Mounting Adapter Assy, Pendant connect an ActiveLED® HR-16 or HR-24 fixture to 34


  • Mounting Adapter Assembly - Pendant connect an ActiveLED® HR-16 or HR-24 High Bay Round fixture to 3/4" O/D solid conduit

  • Adapter connects to an existing ActiveLED High Bay Round light fixture using a single high-tensile bolt

  • Adapter has a 7/8" diameter plain hole at the top to accept 3/4" O/D solid conduit pendant, conduit secured using two 1/2" NPT lock-nuts threaded onto the conduit

  • Kit includes the Adapter Bracket, securing bolt with nut & washer and two 1/2" NPT conduit locknuts

  • Adapter laser-cut and robustly fabricated from 14 gauge 304 Stainless Steel for longevity - designed with sufficient room to accommodate the AC line feed from inside the conduit to the fixture

  • Environmentally Safe Lighting:
    • Zero mercury content
    • Eliminates disposal of
    hazardous materials
    • Facilitates LEED® points

  • Optional ActiveLED controls for additional energy savings:
    • Motion Sensor
    • Daylight Sensor
    • Digital Rotary Dimmer
    • LightSpace Manager
    • Battery Backup for
    emergency lighting

    EXAMPLE:
    A 150 Watt ActiveLED HR-24 fixture, that is dimmed down to light level 40 when there is no motion sensed, consumes just 13.5 Watt (9% of 150 Watt) - saving 136.5 Watt, 91%



Mounting Adapter Assy - Pendant connect an ActiveLED® HR-16 or HR-24 High Bay Round fixture to 3/4" O/D solid conduit

Pendant-connect an ActiveLED® High Bay Round fixture (16" or 24") to 3/4" O/D solid conduit - connects directly to the existing hanging bracket on the light fixture

Installation of the Mounting Adapter is a simple process of first attaching to the solid down-conduit using the provided 1/2" NPT conduit nuts and then attaching to the fixture with a single bolt assembly. The Mounting Adapter has sufficient room to accommodate the AC line feed from inside the conduit to the fixture.

Mounting Adapter is easily installed onto the HR-16 or HR-24 fixture utilizing the existing hole in the fixture's hanging bracket.

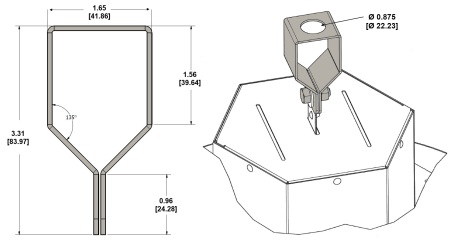

Schematic of the Mounting Adapter Assy 00-27-0013-0001

The following schematic outlines the overall dimensions of the Adapter, including mounting hole sizes and positions. Also shown is a cutaway of the top of a High Bay Round light fixture with the Adapter attached.

00-27-0013-0001

ActiveLED® Technology

Ringdale uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than HID light fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED® Diffuser Technology

The Ringdale ActiveLED light fixtures use state-of-the-art diffuser technology with a minimal amount of light loss within the fixture providing for maximum lighting efficiency.

ActiveLED® Warranties

We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements, fixtures and this Mounting Adapter, 5 years on power supplies.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

Mounting Adapter Assembly Part Number:

00-27-0013-0001


Technical Information

Adapter Kit Contents:• Adapter Bracket (1)
• Socket-head Capscrew assy (1)
• 1/2" NPT Conduit Lock-Nuts (2)

Connection to 3/4" Solid Conduit:A 7/8" diameter plain hole in Mounting Adapter. Conduit secured to Adapter with two 1/2" NPT lock nuts
Connection to Light Fixture:Single High Tensile socket-head capscrew assembly utilizing hole in Adapter and Hanger of light fixture
Construction Material:14 gauge 304 sheet Stainless Steel, laser-cut
Dimensions:1.50" x 1.65" x 3.31" tall(3.8 x 4.2 x 8.4 cm)
Weight:4 ounces (0.11 Kg)
