More light, less power, longer life

The latest LED High Bay lighting technology, discover how ActiveLED can significantly reduce your operating costs

High Bay Lights and High Bay Lighting Solutions

ActiveLED High Bay Lights for Commercial and Industrial applications come in form of round and linear high bay lighting fixtures. Round High Bay fixtures are used in open space scenarios like ballrooms and manufacturing environments. Linear high bay lights are used as shop lights, in maintenance bays, military tent lighting, in warehouses or cold storage facilities with high shelves. See video on energy efficient high bay warehouse lighting.

ActiveLED is among the most advanced LED High Bay Lighting in the industry with Underwriter Laboratories (cUL) verified performance, ActiveLED High Bay Light Fixtures run the coolest with less than 85° C at an ambient temperature of 60° C. The fixture electronics has two temperature sensors guaranteeing that the fixture cannot overheat; this makes ActiveLED High Bay Fixtures fire safe. Our lights have actually been tested in Siberia and are known to perform at -55°C.

ActiveLED High Bay Lighting fixtures find a perfect application in Hazardous Environments where UL844 classified fixtures are required. ActiveLED High Bay fixtures perform and exceed:

Class 1 - Division 2
Class 2 - Division 1

High Bay Lights can be ordered with NEMA-3x or a NEMA-4 Junction box depending on your explosion proof requirements. Other option include 0..10V dimming, EDSaP digital dimming, motion activation, daylight harvesting and a 48V DC Battery Backup Pack or permanent feed from 48V DC system.

ImageProduct Details
HR16 Series ActiveLED® 16 inch Round High Bay
P/N: HR16 Round High Bay
HR16 Series ActiveLED® 16 inch Round High Bay

HR16 Series ActiveLED® 16 inch Round High Bay Lighting Fixture for 30' spaced grid at 25' high bay with 75 Watt power consumption, active power factor corrected from 100-277 Volt AC supply

HR24 Series ActiveLED® 24 inch Round High Bay Lighting, 150 Watt power consumption
P/N: HR24 Round High Bay Serie
HR24 Series ActiveLED® 24 inch Round High Bay Lighting, 150 Watt power consumption

HR24 Series ActiveLED® Highly Efficient 24" Diameter Round High Bay Lighting for 20' to 45' spaced grid at 30' to 50' high bay - 150 Watt power consumption. Options: Motion Activated and IR Remote Programmable

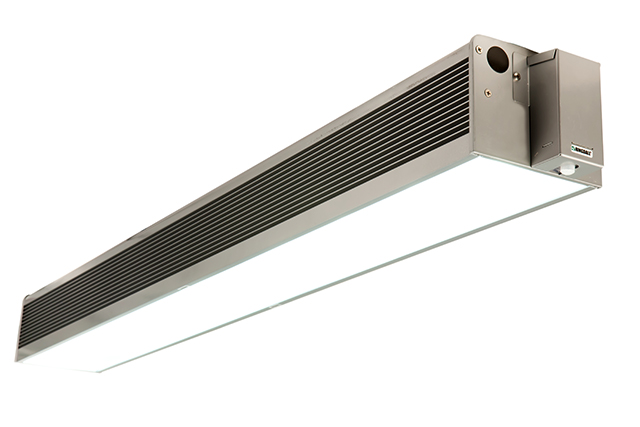

HS48 Series ActiveLED® High Bay Strip Lighting, 4 foot long and up to 104 Watt power consumption
P/N: HS48 Linear HighBay Strip
HS48 Series ActiveLED® High Bay Strip Lighting, 4 foot long and up to 104 Watt power consumption

HS48 Series ActiveLED® High Bay Strip Lighting provides crisp bright and consistent light for retail, manufacturing and warehouse lighting with optional IR Programability - 52 to 104 Watt fixtures.

Mounting Adapter Assy, Pendant connect an ActiveLED® HR-16 or HR-24 fixture to 3/4
P/N: 00-27-0013-0001 Bracket
Mounting Adapter Assy, Pendant connect an ActiveLED® HR-16 or HR-24 fixture to 3/4" solid conduit

Mounting Adapter Assy - Pendant connect an ActiveLED® HR-16 or HR-24 High Bay fixture to 3/4" solid conduit - connects directly to the existing hanging bracket on the light fixture

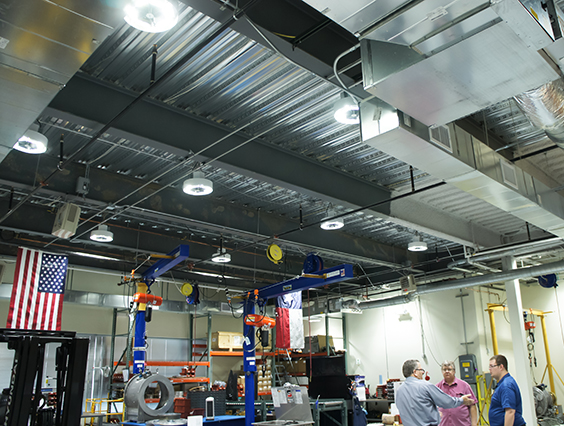

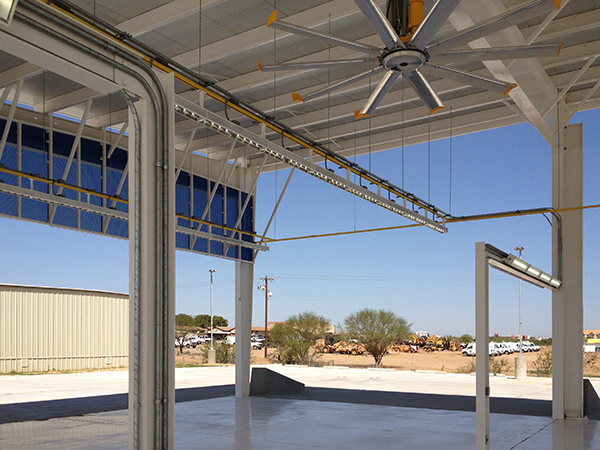

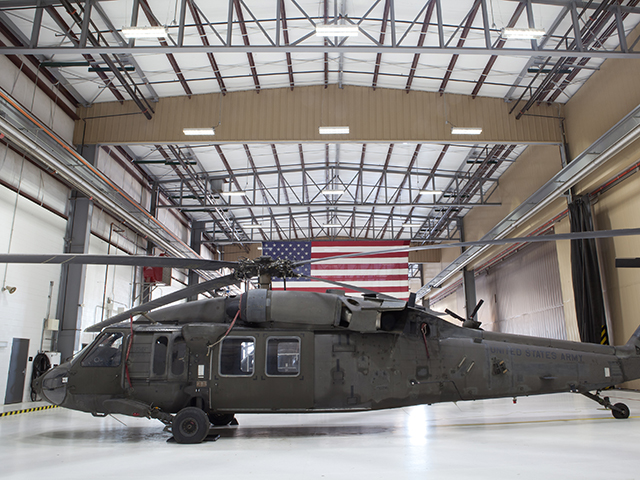

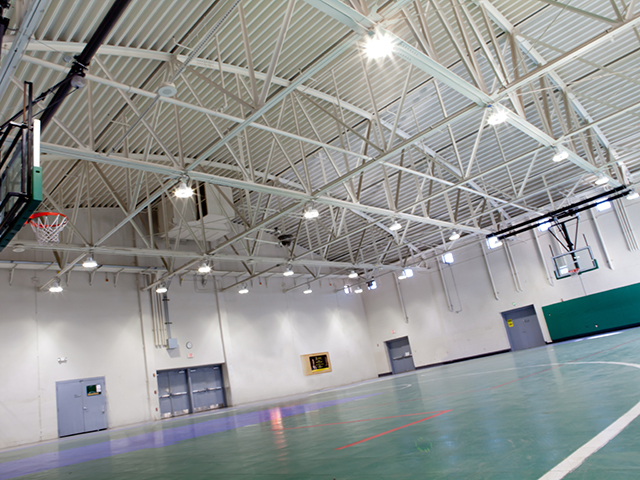

Drill Hall using 75 Watt Round High Bay Light Helicopter Maintenance Facility using Dual 100 Watt Linear High Bay Fixture Tropicana - Cold Storage Facility - using HBS 100 Watt Linear High Bay Fixture NTEC, Frisco, Texas using 75 Watt HBR series Round High Bay in Warehouse and Manufacturing Linear HBS Series High Bay Light with PIR Motion Sensor Army Readiness Center using Linear High Bay and Flood Lights in Maintenance Bay
