New generation office emergency lighting combines state-of-the-art LED, electronic and mechanical design, choice of 8 to 50 Watt models, indoor or overhang applications

The ActiveLED^® OL2-SME fixture combines a dimmable office light fixture with an Emergency Light into one elegant ActiveLED system solution.
With its built-in emergency backup battery pack and charger the OL2-SME will run off emergency battery power for up to three hours after the AC power is cut. And since it is designed to replace legacy emergency lighting, an LED battery status light and Push-to-Test Button (PTT) are clearly visible and accessable from outside the fixture.

The OL2-SME Surface Mounted Emergency Ceiling Light consumes at least 50-85 percent less energy than conventional lighting and additional energy savings can be achieved with the optional lighting management. For example; deploying the optional motion / occupancy sensor to dim the OL2-SME down to level 40 when there is no occupancy activity reduces power consumption by an additional 91%.

With its patented design and superior LED elements, the ActiveLED Surface-Mounted Emergency Ceiling Lighting is a reliable light source with a 90,000-hour lumen life, making it a maintenance-free solution for applications where changing bulbs and ballasts can be hazardous or difficult.

Significant savings from not having to maintain and renew ballasts and fluorescent tubes in light fixtures, as well as reduced heat generation and energy use, justify the initial outlay.

OL2-SME Series Product Overview

Ringdale provides a comprehensive range of ActiveLED Surface-Mounted Emergency Ceiling Light Fixtures with different wattages for varying applications.
The OL2-SME Series products are substantially the ActiveLED OL2 series of 2x2 Recessed Ceiling Lights but in a surface-mounted configuration. In this way, the IES files for the OL2 fixtures are also applicable to the equivalent OL2-SME fixtures.
OL2-SME fixtures include support for the ActiveLED Digital Management capability as standard:

Product Code	Application	Fixture Wattage	Light Output	Fixture Size
OL2SME-5509	Entrance / Exit Emergency	9 Wats	672 Lumens	24-1/8 inch square
OL2SME-5514	Hallway, Stairwell Emergency	14 Watt	1,045 Lumens	24-1/8 inch square
OL2SME-5526	Hallway, Stairwell Emergency	26 Watt	1,940 Lumens	24-1/8 inch square
OL2SME-5538	Office, Stairwell Emergency	38 Watt	2,743 Lumens	24-1/8 inch square
OL2SME-5550	Office, Stairwell Emergency	50 Watt	3,880 Lumens	24-1/8 inch square

ActiveLED^® Technology

Ringdale uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than fluorescent light fixtures. Our state-of-the-art electronics monitor current and temperature of the electronics substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED^® Diffuser Technology

We use state-of-the-art diffuser technology with a minimal amount of light loss in the fixture providing for maximum lighting efficiency.

ActiveLED^®Architectural Features

ActiveLED Surface-Mounted Ceiling Lights are half the height of a conventional fluorescent light fixture and half the weight, putting less stress on the ceiling structure.

ActiveLED^® Warranties

We provide mechanically robust indoor and outdoor lighting systems; our warranties are 10 years on LED elements, fixtures and drivers / power supplies and batteries.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

OL2-SME Installation Process

Installing the OL2-SME Surface Mount fixture is an easy-to-follow 11-step process, as follows.

(1)	Remove two screws securing the LED Pan from the Top Housing and release two hinge screws two turns, hinge-open the fixture.
(2)	For convenience of installation, remove the battery box (four screws, battery packs are shipped with cable disconnected) and set aside.
(3)	Unplug the LED wiring harness from the power supply.
(4)	Remove completely the two hinge screws from the side of the fixture to remove the LED Pan from the Top Housing, safely set screws aside.
(5)	Attach the Top Housing to the ceiling structure, using either the J-Box compatible mounting holes or the corner-mounting holes. Pull AC line wires through the center knock-out.
(6)	Physically reinstall the battery pack and connect the 4-position cable.
(7)	Reuse the two hinge screws to reattach the Top Housing to the LED Pan.
(8)	Thread the AC line feed into the Lid and attach to the ActiveLED power supply / driver using wire nuts.
(9)	Reconnect LED harness to Power Supply, reconnect cable to battery pack.
(10)	Carefully close the fixture ensuring no cables or wires are pinched, reinstall two retaining screws.
(11)	Verify that the external LED indicator is functioning, test emergency operation by pushing-in and holding the Test Button.

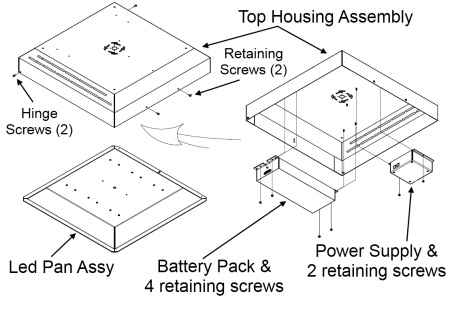

The following schematic outlines the major components of the OL2-SME Emergency light fixture:

OL2-SME Sample Part Numbers:

OL2U-SME-A5006WH, 5000K 6/9 Watt
OL2U-SME-A3536WH, 3500K 36/38 Watt
OL2U-SME-A5012WH, 5000K 12/14 Watt
OL2U-SME-A5024WH, 5000K 24/26 Watt
OL2U-SME-A5036WH, 5000K 36/38 Watt
OL2U-SME-A5048WH, 5000K 48/50 Watt

Technical Information

Input Voltage:	• Auto-sensing 100..277 Volts AC, 50/60 Hz • Digital Power Source, dedicated circuit strongly recommended
Power Statistics: CCT Color Temperatures:	Dependent upon fixture model: • 8 to 50 Watt Fixtures • 6 to 48 Watt LEDs Choice of 2700K, 3000K, 3500K, 4000K and 5000K, in accordance with ANSI C78.377A
Key Functionality:	• Surface-Mounted LED light fixture • Built-in battery-powered Emergency Light • Battery Pack for at least 3 hours emergency lighting • Battery is trickle-charged under normal AC operation • External LED indicator: - AC power is present (Green) - DC battery power is on (Red) • Push To Test Button (PTT) interrupts AC power to test battery function & status
Operating Temperature:	-58° F to +149° F (-50° to +65° C)
Mounting:	Surface-Mounted underneath a ceiling, ceiling structure or overhang, or on a wall
Fixture Dimensions:	24-1/8" x 24-1/8" x 5" tall (61.3 x 61.3 x 12.7cm)
Weight:	35 lb (15.9 Kg)
Listings:	cUL Listed Driver, suitable for damp locations. TM21 based on CALIPER ISTM Test to UL1598 CALIPER LM-79 Report, LM-80 info available CE File, RoHS compliant, IP66 Rated. Conforms to FCC Part 15.19 Subpart B Class A
