Linear Wall Mounting Bracket for ActiveLED® 24


  • Linear Wall Mounting Bracket - Sturdy design mounts ActiveLED® Flood Lights on a wall, ceiling or flat surface in an end-to-end linear orientation to suit most applications

  • Suitable for both 24" and 40" ActiveLED Flood Lights

  • Pre-drilled bracket facilitates easy installation onto a flat surface (wall, ceiling, etc)

  • Pre-drilled to accommodate the flood light's 10mm Allthread mounting bolts while allowing precise rotational adjustment of each flood light

  • Each Linear installation will require one Wall Mounting Kit (00-27-0003-0004) that includes left-hand and right-hand End Brackets to complete the linear installation

  • Unfinished 12 gauge Stainless Steel for longevity, blends-in with most applications

  • Environmentally Safe Lighting:
    • Zero mercury content
    • Eliminates disposal of
    hazardous materials
    • Facilitates LEED® points

  • Optional ActiveLED light fixture controls for additional energy savings:
    • Motion Sensor
    • Daylight Sensor
    • Digital Rotary Dimmer
    • LightSpace Manager
    • Battery Backup for
    emergency lighting



Linear Wall Mounting Bracket for ActiveLED® 24" and 40" Flood Lights

Linear Wall Mounting Bracket - Sturdy design mounts ActiveLED 24" or 40" Flood Lights in any orientation and as close to the wall or flat surface as possible while allowing precise rotational adjustment of each flood light

The Linear Wall Mounting Bracket facilitates the installation of ActiveLED Flood Lights in an end-to-end linear configuration.
Installation is a simple matter of positioning the Linear Wall Brackets the appropriate distance apart to accommodate the flood lights and attaching each Linear Bracket to the building structure with two bolts (mounting bolts not included).

The floodlight is also easily installed utilizing the provided mounting holes to accept the floodlight's 10mm Allthread mounting bolts.

Linear Wall Mounting of Multiple Flood Lights

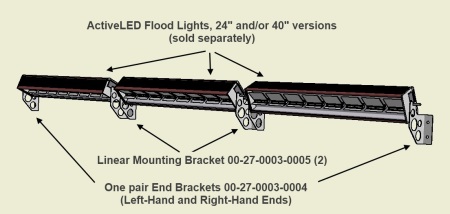

The number of Linear Wall Mounting Brackets that can be used in Flood Light installation is only limited by the available wall space. The following schematic outlines the installation of three ActiveLED Flood Lights using two Linear Brackets and a pair of End Brackets. The brackets (both Linear and End) support flood lights 4.75" at the center line from the mounting surface, allowing each individual flood light to be rotationally adjusted to the ideal position for illuminating the task.

00-27-0003-0005

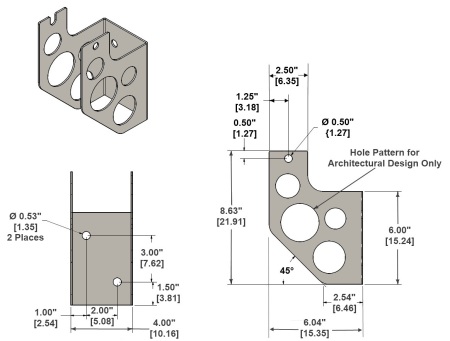

Schematic of the Linear Wall Mounting Bracket 00-27-0003-0005

The following schematic outlines the overall dimensions of the Linear Mounting Bracket, including mounting hole sizes and positions.

00-27-0003-0005

ActiveLED® Technology

Ringdale uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than HID light fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED® Diffuser Technology

The Ringdale ActiveLED light fixtures use state-of-the-art diffuser technology with a minimal amount of light loss within the fixture providing for maximum lighting efficiency.

ActiveLED® Warranties

We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements, Fixtures, Power Supplies / Drivers and this Linear Wall Mount Bracket.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

NOTE:
Each Linear Flood Light installation will require one set of End Brackets (left-hand end and right-hand end), supplied in optional Wall Mounting Kit part number 00-27-0003-0004.

Linear Wall Mounting Bracket Part Number:

00-27-0003-0005, suitable for both 24" and 40" version flood lights.
Optional End Brackets (pair) = 00-27-0003-0004


Technical Information

Construction Material:12 gauge 304 sheet Stainless Steel, laser-formed, unpainted
Overall Dimensions:8.63" tall x 4.00" wide x 6.04" deep
(21.91 x 10.16 x 15.35 cm)
Weight:~1.5 lbs (0.7 Kg)
Mounting Distance:Brackets support a flood light 4.75" at center line from mounting surface
Flood Light Support:Slots in Bracket accommodate ActiveLED Flood Light's 10 mm Allthread mounting bolt
Mounting Bracket Contents:One Linear Wall Mounting Bracket
Optional End Brackets:For each Linear installation, one set of End Brackets (one left-hand end and
one right-hand end) will need to be ordered separately, part 00-27-0003-0004
Wall Mounting:Each Bracket has two 0.50" diameter holes to accommodate suitable mounting bolts
(bolts not included)
