A universal mounting for attaching an ActiveLED® PTH series Post-Top fixture to a 3" Outer Diameter Tennon or Round Pole
Certain Street / Parking Lot / Walkway applications require a light fixture to be attached to the top of a Round Pole via a "clamping" adapter, particularly where drilling holes in the pole is impossible or inadvisable.
The ActiveLED® PTH Post-Top lights are designed and manufactured to attach to the top of a wall or 6' square post, so the Adapter Kit can be used to attach a PTH light fixture to a 3" O/D round tennon or pole, the adapter clamps around the pole and negates the need to drill holes in the pole.
Contents of the ActiveLED® Mounting Kit
The Mounting Adapter Kit part 00-27-0015-0000 consists of the following items:
● Adapter, 6" Square (qty 1)
● Clamp for 3" O/D Pipe / Pole Top (1 pair)
● 3/4" x 1/4"-20 Phillips SS Bolts (qty 6)
● Self-tap Screw, #8-18 x 1/2' Stainless (qty 8)
● Assorted nuts and washers

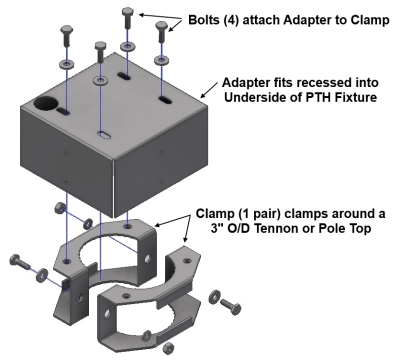

Schematic of the ActiveLED® Mounting Kit
Installation of this mounting adapter is a straightforward three-step process:
● Attach the Clamp in the appropriate location on the 3" pipe using the two bolts, nuts and washers provided.
● Slide the Adapter over the installed Clamp and secure using the four bolts and washers provided.
● Carefully slide the PTH fixture over the assembled Adapter and secure it using the provided self-tapping screws.
ActiveLED® Technology
Ringdale uses the latest in energy efficient LEDs and LED modules producing equivalent or greater light output than fluorescent light fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).
ActiveLED® Warranties
We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements, Fixtures, Power Supplies / Drivers and this Mounting Bracket.
Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.
Please refer to the Ringdale website for more details on our ActiveLED® PTH series of Pole Top fixtures.
ActiveLED® Mounting Kit Part Number: 00-27-0015-0000
| Dimensions: | 5.6" (W) x 5.6" (D) x 3.0" (H)(14.2 x 14.2 x 7.6 cm) |
|---|---|
| Weight: | 1.5 lbs (0.68 Kg) |
| Construction: | Clamp: 12 Gauge 304 unpainted Stainless Steel Cover Adapter: 0.090 painted Aluminum |
| Pole Compatibility: | 3.0" Outer Diameter (76 mm) |
| Kit Contents: | ● Adapter, 6" Square (qty 1) ● Clamp for 3" O/D Pipe / Pole Top (1 pair) ● 3/4" x 1/4"-20 Phillips SS Bolts (qty 6) ● Self-tap Screw, #8-18 x 1/2' Stainless (qty 8) ● Assorted nuts & washers |
| Prerequisites: | None |
| Part Number: | 00-27-0015-0000 |
Caution! All specifications published herein are subject to change without notice. See website ActiveLED.com for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale-technology.com for Terms and Condtions of Sale and Service.
