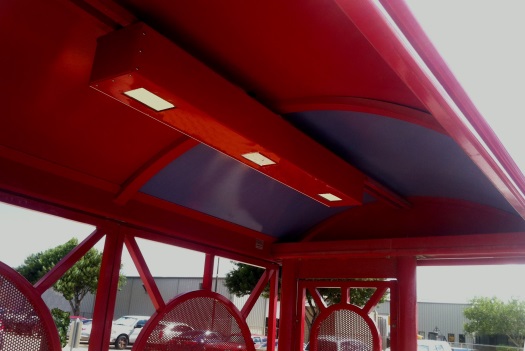

VRLS Series ActiveLED® Vandal Resistant Lights provide a safer, more secure environment for those waiting for public transportation or using public facilities. Optional Solar Panel provides a self-contained lighting system in applications where there is no available AC power. Modular design lends itself to customizable and configurable solutions for most vandal-resistant applications.
The ActiveLED® VRLS Series Vandal Resistant Linear Light is an energy efficient, cost effective and high performance vandal-proof LED light contributing to a safer, more secure environment for those waiting for public transportation.
The ActiveLED VRLS Series consumes at least 50-85 percent less energy than conventional lighting. With its patented design and superior LED elements, the ActiveLED Vandal Resistant Light is a reliable light source with a 90,000-hour lumen life, making it a virtually maintenance-free solution for applications where changing bulbs and ballasts can be hazardous and expensive.
ActiveLED® VRLS Series Configuration Options / Modularity
The modular design of the VRLS series system provides the flexibility to be able to factory-configure a lighting fixture for most Transit, Bus and Coach Stop Shelter and Public Area applications, list of options are as follows:
| • Fixture Length Selections: | "24", 36", 48", 60", Custom |
| • Energy Source Options: | Solar Array or Wind Turbine (optional 110-277 VAC or 48 VDC) |
| • Charging Efficiency: | >96% typical |
| • Integrated Battery Technology: | 48 Volts DC Lithium-Iron Phosphate (LiFePO) |
| • Integrated Battery Pack Options: | 6.4, 9.6, 13.2 Amp-Hours or External |
| • DC Drive Efficiency: | ~ 98% |
| • Mounting Options: | Vandal-Resistant Surface / Ceiling or Wall or Pendant |
| • Fixture Wattage Choices: | 8, 14, 20 or 26 Watt fixtures |
| • CCT Color Temperature Choices: | 2700K, 3000K, 3500K, 4000K, 5000K in accordance with ANSI C78.377A |
| • Traditional Lighting Equivalence: | Up to 300 Watt Incandescent, 250 Watt HID, 100 Watt Fluorescent |
| • Daylight / Dusk-to-Dawn Sensor: | The VRLS monitors the rise and fall of the voltage from the Solar Array to accurately calculate the Astronomically Twilight Detector for turning the lights off and on, while automatically adjusting for the seasons |
| • Solar Array / Turbine Support: | Rated for up to 220 watts maximum, 8 to 48 Volts DC, 6 Amps maximum NOTE: Solar Array / Turbine not included in price of this configuration |
ActiveLED® Technology
Ringdale uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than fluorescent light fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).
ActiveLED® Diffuser Technology
We use state-of-the-art diffuser technology with a minimal amount of light loss within the fixture providing for maximum lighting efficiency.
ActiveLED® Warranties
We provide mechanically robust indoor and outdoor lighting systems; our warranties are 10 years on LED elements, fixtures and drivers / power supplies, 5 years on the battery pack.
Ringdale is an ISO 9001:2015 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.
ActiveLED® VRLS Series Sample Configurations
Ringdale provides a comprehensive range of VRLS Series light fixture configurations for various Vandal Resistant applications, the following lists just a few of these selections:
|
PRODUCT CODE |
TRANSIT SHELTER LIGHT DESCRIPTION |
EQUIVALENCES |
| VRLS-48-S09C5018RD | Vandal Resistant Solar Light, 48" Long, Surface Mount, 9.6 Ah Battery Pack, High Impact Diffuser, CCT5000K, 18 Watt Red fixture | 130 / 40 watts |
| VRLS-36-S06C5012BK | Vandal Resistant Solar Light, 36" Long, Surface Mount, 6.4 Ah Battery Pack, High Impact Diffuser, CCT5000K, 12 Watt Black fixture | 100 / 30 watts |
| VRLS-48-S12C4018WH | Vandal Resistantr Solar Light, 48" Long, Surface Mount, 13.2 Ah Battery Pack, High Impact Diffuser, CCT4000K, 18 Watt White fixture | 130 / 40 watts |
NOTE: Solar Array / Turbine not included in this configuration, these items priced & sold separately.
| Integral Battery Pack: | 48 Volts DC Lithium Iron (LiFePO) |
|---|---|
| Power Statistics: Power Factor: | Dependent on model selected: • 8 to 26 Watt Fixtures • 6 to 24 Watt LEDs > 96% |
| Listings & Tests | cUL listed, CE, suitable for
damp locations. LM-79 and LM-80 info available.RoHS compliant. Conforms to FCC Part 15.19 Subpart B Class A |
| Operating Temperature: | -58° F to +149° F (-50° F to +65° C) |
| Dimensions: Weight: | 6.25" W x 5.0" H (15.9 x 12.5 cm).
Available in 24", 36", 48", 60" and custom lengths 48" = 65 lbs including Charger & 9.6Ah Battery Pack (29.5 Kg) |
| CCT Color Temperatures: | Choice of 2700K, 3000K, 3500K, 4000K and 5000K, in accordance with ANSI C78.377A |
| Mounting: | Vandal-Resistant attachment directly to the underneath of most Transit Shelters and Public Facilities |
| Not Included: | Solar Array / Turbine not included in this configuration, these items priced & sold separately |
Caution! All specifications published herein are subject to change without notice. See website ActiveLED.com for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale-technology.com for Terms and Condtions of Sale and Service.
