ActiveLED® Pole-Top Mounting Adapter


  • ActiveLED® Pole-top Mounting Adapter Adapter - Adapts a 4" Square Pole-top to a 2-3/8" diameter Round Pipe

  • Installation is simple and straightforward using just 2 high-tensile hex-head bolts

  • Robust and durable adapter

  • Pipe material is 2" Schedule 40 Steel Pipe (2-3/8" Outer Diameter)

  • ActiveLED - Environmentally Safe Lighting:
    • Zero mercury content
    • Eliminates disposal of
    hazardous materials
    • Facilitates LEED® points

  • Optional ActiveLED controls for additional energy savings:
    • Motion Sensor
    • Daylight Sensor
    • Digital Rotary Dimmer
    • LightSpace Manager
    • Battery Backup for
    emergency lighting



Mounting Adapter - Adapts a 4" Square Pole-top to a 2-3/8" diameter Round Pipe

A universal adapter for attaching lighting fixtures to a 4" square pole-top for illuminating flag-poles, statuary, towers, sides of buildings

Certain lighting applications require an adjustable light fixture to be attached to the top of a square light pole and this Adapter provides a 2-3/8" diameter round pipe on top of the pole for mounting the light fixture.

Ringdale's FL series ActiveLED® Flood Lights can be factory-configured to attach to an adjustable knuckle mount that slips straight over the 2-38" mounting pipe / round tube on this Adapter.

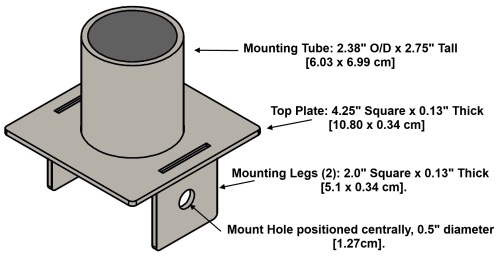

Schematic of the Round Arm Adapter Kit

Installing the Adapter is a very simple and straightforward process.
The adapter has two legs that slide inside the existing pole and they attach to the pole with two high-tensile bolts. The optional adjustable knuckle then securely clamps to the top of the Adapter - all bolts included in the Mounting Adapter Kit.

00-27-0002-0060

ActiveLED® Technology

Ringdale uses the latest in energy efficient LEDs and LED modules producing equivalent or greater light output than fluorescent light fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED® Warranties

We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements, Fixtures, Power Supplies / Drivers and this Pole Top Mounting Adapter.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

Please refer to the Ringdale website for more details on our ActiveLED® FL series of Flood Light fixtures.

Pole-top Adapter Part Number: 00-27-0002-0060


Technical Information

Weight:1.5 lbs
Adapter Compatibility:Mounts inside a 4" square steel pole/mast to adapt to a 2-3/8" [6.03cm] O/D round pipe/tube
Dimensions:4" square steel to 2-3/8" O/D [6.03cm] round pipe/tube, 2-3/4" tall [6.99cm]
Kit Contents:• Mounting Adapter (1)
• Four high-tensile bolts and associated washers & nuts
Construction:Machined and welded from 10 GA Steel, powder coated. Pipe material is 2" Schedule 40 Steel Pipe
Adapter Part Number:00-27-0002-0060

Caution! All specifications published herein are subject to change without notice. See website ActiveLED.com for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale-technology.com for Terms and Condtions of Sale and Service.
