Cost effective to install - Light output similar to 75-175 Watt legacy bulb fixture, available in 8 to 33 Watt fixtures - attaches directly to ceiling or wall structure

The Ringdale ActiveLED^® LPSL Series Low-profile Public Space Light is just 1.9" tall and is an energy efficient, cost effective and high performance LED light for public space areas in facilities such as Apartment Complexes, Housing Projects, Condominiums, Educational Facilities, Hospitals and Nursing Homes.

It is ideally suited for illuminating "public space" areas such as corridors, walkways, entranceways and hallways - providing a safer, more secure environment.

The ActiveLED Low-profile Public Space Light consumes at least 50-85 percent less energy than conventional lighting and its optional motion sensor provides additional and significant energy savings.
With its patented design and superior LED elements, the ActiveLED Low-profile Public Space Light is a reliable light source with a 90,000-hour lumen life, making it a maintenance-free solution for applications where changing lights can be hazardous and expensive.

LPSL Series Product Overview

Ringdale provides a comprehensive range of LPSL Series ActiveLED Low-profile Public Space Light fixtures and a choice of CCT color temperatures are available for different applications - 3000K for a warm color temperature that compliments earth tones and 5000K that closely emulates natural daylight, the following lists just a few of the PSL selections:

Product Code	Application & Length	CCT Color	Wattage	Light Output	Suggested Mount Hght
LPSL24-2706	Public Space, 24.9"	2700K	8 watts	Lumens TBD	2.5 m / 8 ft
LPSL24-3006	Public Space, 24.9"	3000K	8 watts	Lumens TBD	2.5 m / 8 ft
LPSL24-3506	Public Space, 24.9"	3500K	8 watts	Lumens TBD	2.5 m / 8 ft
LPSL24-5006	Public Space, 24.9"	5000K	8 watts	Lumens TBD	2.5 m / 8 ft
LPSL48-2736	Public Space, 48"	2700K	33 watts	Lumens TBD	3.7 m / 12 ft
LPSL48-3036	Public Space, 48"	3000K	33 watts	Lumens TBD	3.7 m / 12 ft
LPSL48-3536	Public Space, 48"	3500K	33 watts	Lumens TBD	3.7 m / 12 ft
LPSL48-5036	Public Space, 48"	5000K	33 watts	Lumens TBD	3.7 m / 12 ft

NOTES

●	36/30 watt versions have 36 watts of LEDs (6 x 6W) driven at the equivalency of 30 watts of LEDs to provide a light source that emanates evenly from the full length of the 33 watt fixture.
●	Mounting hardware is not included in the price.
●	Voltage-specific power supply, specify AC voltage at time of ordering.

Optional ActiveLED^® DC-Powered LPSL Series Low-profile Public Space Lights

For applications where low-voltage DC power at the fixture is preferred or where ActiveLED LightSpace energy management capabilities are required, any Low-profile Public Space Light can be supplied without a power supply for connection via low-voltage DC wiring to a remote ActiveLED power supply installed in a safe location.

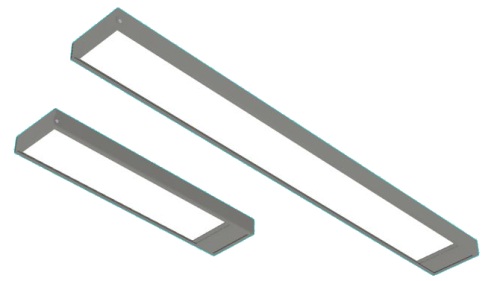

The ActiveLED Low-profile Public Space Lights are available in 12", 24", 36" and 48" lengths and the following depicts a 24 inch and a 48 inch example.

ActiveLED^® Technology

Ringdale uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than fluorescent light fixturers. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED^® Diffuser Technology

We use state-of-the-art diffuser technology with a minimal amount of light loss within the fixture providing for maximum lighting efficiency.

ActiveLED^® Warranties

We provide mechanically robust indoor and outdoor lighting systems; our warranties are 10 years on LED elements, fixtures and drivers / power supplies.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

ActiveLED^® LPSL Series Sample Part Numbers:
00-27-3324-2707 (24.9", 8 watts, CCT2700K)
00-27-3324-3007 (24.9", 8 watts, CCT3000K)
00-27-3324-3507 (24.9", 8 watts, CCT3500K)
00-27-3324-5507 (24.9", 8 watts, CCT5000K)

00-27-3348-2733 (48", 33 watts, CCT2700K)
00-27-3348-3033 (48", 33 watts, CCT3000K)
00-27-3348-3533 (48", 33 watts, CCT3500K)
00-27-3348-5533 (48", 33 watts, CCT5000K)

Technical Information

Input Voltage:	• Voltage-specific, specify at time of ordering from the following options: (1) = 100 VAC, 60Hz (2) = 110/120 VAC, 60 Hz (3) = 208 VAC, 60 Hz (4) = 240 VAC, 50 Hz (5) = 277 VAC, 60 Hz. • Digital Power Source, dedicated circuit breaker strongly recommended
Power Statistics:	Dependent on model selected: • 8 to 33 Watt Fixtures • 6 to 36 Watt LEDs
Power Factor:	> 0.95 (at 208 Volts)
Listings & Tests	cUL Listed Driver, suitable for damp locations. TM21 based on CALIPER ISTM Test to UL1598 CALIPER LM-79 Report, LM-80 info available CE File, RoHS compliant, IP66 Rated. Conforms to FCC Part 15.19 Subpart B Class A
Operating Temp:	-58° F to +149° F (-50° F to +65° C)
Dimensions: Weight:	5.9" W x 1.9" H x 24.9" L (15.0 x 4.8 x 63.2cm). Also available in 12", 24", 36" & 48" lengths 24.9" = 5.0 lbs (2.3 Kg)
CCT Color Temperatures:	Choice of 2700K, 3000K, 3500K, 4000K, 5000K, in accordance with ANSI C78.377A
Mounting:	Attaches directly to ceiling or wall structure using 2, 3 or 4 screws (screws not included)
