Classic Wellesley ActiveLED® Retrofit for King Luminaires

  • Classic Wellesley ActiveLED® Retrofit - For most exterior Wellesley Luminaires, up to 40 Watt LED Engine replaces up to 175 Watt Metal Halide bulb

  • Significant Energy Savings (50-85%) and very low maintenance costs compared to conventional high wattage and inefficient bulbs

  • 21st century retrofit ideal for:
    • Walkways
    • Parking lots
    • Pedestrian areas
    • Other public spaces

  • Innovative self-contained ActiveLED light engine designed to retrofit Vintage Wellesley Luminaires:
    • Installs in existing Luminaire
    with two screws
    • Complete replacement for
    inefficient bulb electronics
    • 2.8 lbs replaces over 10 lbs
    of legacy electronics

  • Improved light quality and illumination uniformity:
    • Lumen Lifetime of 90,000
    hours, 90% Luminous Flux

  • Optional energy management features provide additional energy savings, including:
    • Motion Sensor or
    • Daylight Sensor
    • Digital Rotary Dimmer

  • Environmentally Safe Lighting:
    • Zero mercury content
    • Eliminates disposal of
    hazardous materials
    • Facilitates LEED® points

  • The Wellesley Retrofit is fully dark sky compliant and the innovative design delivers the maximum possible light to the surrounding public space while eliminating light trespass to adjacent properties

    CCT color choice of 2700K, 3000K, 3500K, 4000K and 5000K in accordance with ANSI C78.377A

Classic Wellesley ActiveLED® Retrofit for most Vintage King exterior Luminaires, up to 40 Watt LED Engine replaces up to 175 Watt Metal Halide electronics

Provides a 21st century solution for "vintage" outdoor acorn-style light fixtures with an energy efficient, high performance LED retrofit in 20, 26 or 40 watt versions

The U.S.-manufactured ActiveLED® Classic Wellesley Acorn Retrofit is an innovative, self-contained LED light engine designed to easily replace the inefficient, high-wattage light bulb assembly in most existing King acorn-style fixtures, providing energy savings of 50-80 percent.

Municipalities, universities and colleges use Vintage style lamplights for roadways, sidewalks and public spaces in historical and residential neighborhoods. Typically, these lights have large acrylic or glass globes and cast aluminum bases that conceal 175-watt Metal Halide light bulbs and electronics that need frequent replacement.

The existing lamplight can be retrofitted with the low-wattage ActiveLED light and still have the same “old town” characteristics. The only noticeable difference in its outward appearance is a better quality of light, which helps to improve the safety value of its surroundings.
Ringdale’s patented LED technology also ensures a long life span of 90,000 hours (24/7 is 8,760 hours per year), lowering the bottom line when it comes to maintenance and operational costs.

The ActiveLED Classic Wellesley Light Retrofit meets many municipalities’ latest sustainability mandates for reducing energy usage. For applications where lower light levels would be appropriate during periods of inactivity, the retrofitted Wellesley lamplight can be configured with an optional digital dimmer and/or motion sensor.

The innovative design of the Wellesley Retrofit is fully dark sky compliant and delivers the maximum possible light to the surrounding public space while eliminating light trespass to adjacent properties.

ActiveLED® Classic Wellesley Retrofit Product Overview

Ringdale provides three models of ActiveLED Classic Wellesley Retrofits for different lighting applications, including CCT color temperature choices of 2700K, 3000K, 3500K, 4000K and 5000K:

Product Code



Light Output

Suggested Mount Height


Walk Path

20 Watts

~1,820 Lumens

2.4 m / 8 ft


Pedestrian Area

26 Watts

~2,360 Lumens

4.0 m / 13 ft


Parking Lot

40 Watts

~3,640 Lumens

6.0 m / 20 ft

ActiveLED® Technology

Ringdale uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than current HID technology (Metal Halide and High Pressure Sodium). Our state-of-the-art electronics monitor current and temperature of the LED substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED® Warranties

We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements, fixtures and drivers / power supplies / drivers.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

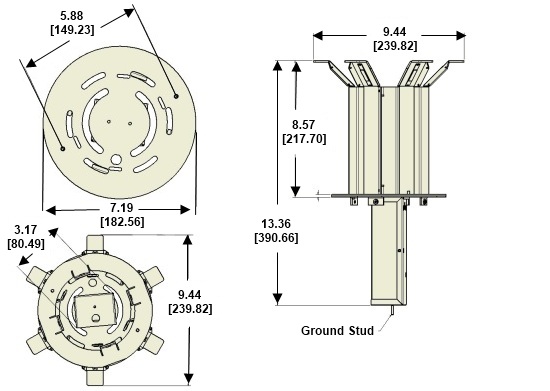

ActiveLED® Classic Wellesley Retrofit Space Requirements

The ActiveLED Wellesley Retrofit requires a minimal amount of space in the existing King Luminaire, as follows:


LEGEND: Measurements in inches, [measurements in mm]

Mounting Ring / Plate (aluminum):

- Overall diameter of 7.19" [182.56mm]
- Mounting holes on standard 5.88" [149.23 mm] mounting pattern
- Overall thickness of 0.091"
- Other size Mounting Ring / Plates available, call for details
Power Supply / Driver Assembly:

- At least 5.6" clearance below the Mounting Ring [142.4 mm]
- At least 3.17" overall clearance at widest point [80.49mm]
- At least 1" all-round clearance [25.4mm]
LED Elements / Reflector / Heatsink Assembly:

- At least 9.5" height clearance above the Mounting Ring [241.30 mm]
- Overall diameter of at least 9.44" [239.82 mm]
- At least 1" all-round clearance [25.4 mm]

Removing Existing Wellesley Luminaire Bowl & Electronics Assembly

It is a very straightforward process to remove the existing Wellesley Luminaire "bowl" and electronics assembly in preparation for installing the ActiveLED Wellesley Retrofit , please refer to the following diagram for more details.

The existing electronics assembly will need to be disposed of safely and in accordance with local regulations.

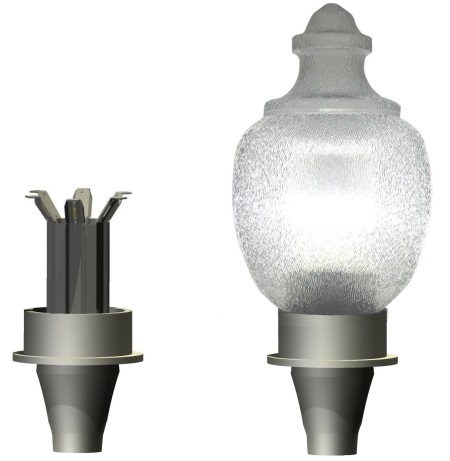

Wellesley Luminaire with ActiveLED® Retrofit Technology Installed

The following illustrates a Vintage Wellesley Luminaire with its original legacy electronics removed and the ActiveLED Wellesley Retrofit installed and fully functional.


NOTE: Wellesley Luminaire fixture, glass and pole are not included in the ActiveLED retrofit price.

ActiveLED® Wellesley Retrofit Sample Part Numbers:


Technical Information

Input Voltage:• Auto-sensing 100..277V AC, 50 / 60 Hz
• Digital Power Source, dedicated circuit strongly recommended
Power Stastics:Dependent upon model selected:
• 18, 24 or 36 Watt LEDs
• 20, 26 or 40 Watt Fixtures
Power Factor:> 0.95 (at 208 Volts)
Listings & TestscUL Listed Driver, suitable for damp locations.
TM21 based on CALIPER ISTM Test to UL1598
CALIPER LM-79 Report, LM-80 info available
CE File, RoHS compliant, IP66 Rated.
Conforms to FCC Part 15.19 Subpart B Class A
Operating Temperature:-40..+60° C (-40..+140° F)
Dimensions:13.36" overall height, 9.44" diameter (39.1 x 24.0 cm)
Weight:2.8 lbs (1.3 Kg)
CCT Color Temperatures:Choice of 2700K, 3000K, 3500K, 4000K or 5000K in accordance with ANSI C78.377A
