Stirrup Mounting Bracket for ActiveLED® 40


  • Sturdy "Stirrup" bracket design mounts an ActiveLED® 40" floodlight in any orientation to suit most applications

  • Available in 24" and 40" sizes

  • Pre-drilled baseplate facilitates easy installation

  • Bracket utilizes a hole at one end and a slot at the other end to facilitate easy installation of the floodlight's 10mm mounting bolts

  • Available in Brown, Silver, White, Bronze or Charcoal Grey to match the color of the attached floodlight. Other colors available on request

  • Environmentally Safe Lighting:
    • Zero mercury content
    • Eliminates disposal of
    hazardous materials
    • Facilitates LEED® points

  • Optional ActiveLED controls for additional energy savings:
    • Motion Sensor
    • Daylight Sensor
    • Digital Rotary Dimmer
    • LightSpace Manager
    • Battery Backup for
    emergency lighting



Stirrup Mounting Bracket for ActiveLED® 40" Flood Lights

Stirrup Mounting Bracket provide flexible mounting options for ActiveLED® Flood Lights - available in 24" and 40" sizes

Sturdy design mounts ActiveLED Flood Lights in any orientation and allows precise rotational adjustment of the flood light.

Easy installation of the stirrup bracket is achieved with a pre-drilled baseplate. The floodlight is also easily installed utilizing the hole at one end of the bracket and the slot at the other end to accept the floodlight's 10mm Allthread mounting bolts.

00-27-0004-0003

ActiveLED® Technology

Ringdale uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than HID light fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED® Diffuser Technology

The Ringdale ActiveLED light fixtures use state-of-the-art diffuser technology with a minimal amount of light loss within the fixture providing for maximum lighting efficiency.

ActiveLED® Warranties

We provide mechanically robust outdoor and indoor lighting systems; our warranties are 10 years on LED elements, Fixtures, Power Supplies / Drivers and this Stirrup Bracket.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

ActiveLED® Stirrup Bracket Part Numbers:

00-27-0004-0003, 40" version
00-27-0007-0001, 24" version

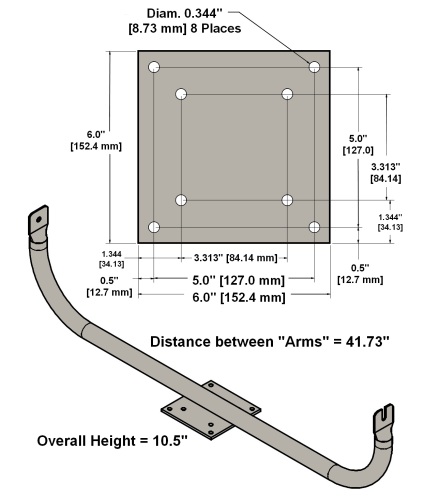

Technical Information

Construction Material:1.5" O/D x 0.065" wall unpainted Stainless Steel tubing for longevity
Dimensions, 40"version:43" overall length,11" high
Weight, 40" version:5.4 lbs (2.4Kg)

Dimensions, 24"version:27" overall length, 10.5" high
Weight, 24" version:4.2 lbs (1.9 Kg)
Part Numbers:00-27-0004-0003 (40")
00-27-0007-0001 (24")
