SWL Series Stairway Light


  • ThermalDRAW™ Cooling Technology - Patented cooling technology ensures LED components will equal or exceed warranty.

  • LUM-INTENSE™ - LED lighting luminaire technology that combines recent advancements in LED Modules, Drivers and Optics to deliver more Lumens per Watt in a smaller package.

  • Warranty - 10 Year Warranty on LED elements, fixture housing, and LED Driver.

  • In Wall mounting for standard brick sizes US, Canada and UK.

  • Powder coated Stainless Steel cover and louvers.


SWL Series Stairway Light

The SWL Series of ActiveLED® In-Wall Lights is an energy efficient, high performance LED fixture for indoor or outdoor accent lighting of walkways, steps and stairs.

The SWL Series Stairway Light is a new generation lighting that combines state-of-the-art LED, electronics and mechanical design, 12 watt fixture.

The SWL Series of ActiveLED® Lights is an energy efficient, high performance LED fixture for indoor or outdoor accent lighting of walkways, steps and stairs.

The fixture is robust and weather resistant employing a stainless steel bezel which can be powder coated and a powder coated high grade aluminum internal structure.

A hermetically sealed and potted LED driver to keep moisture out connects to a hermetically sealed LED.

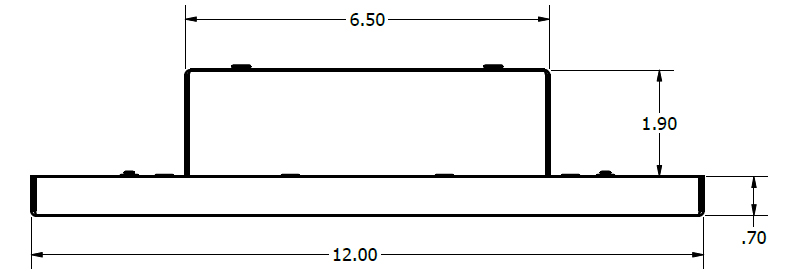

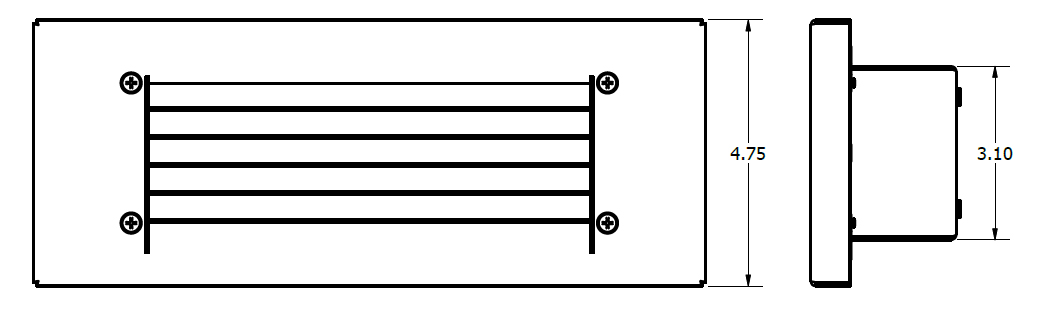

Dimensions shown below are for stainless steel louvered version, non-louvered vandal resistant cover available, other cover dimensions on request:


Technical Information

Input VoltageUniversal 100-277 VAC, 50/60 Hz
Input Power14 Watt
Power Factor >0.91
THD<20% (typical 9.9%)
Operating Temperature-58°F to 149°F,
(-55°C to 60°C)

Caution! All specifications published herein are subject to change without notice. See website ActiveLED.com for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale-technology.com for Terms and Condtions of Sale and Service.
