Solar Generator with Battery Storage and Light as Towable and Portable Cart


  • Features a robust integrated out-foldable solar panel with real 310W production capability (1.5kWh..3kWh per day).

  • Extendable mast up to 9 feet which is stowed inside the cart during transport.

  • A robust and powerful 50,000 Scotopic (26,000 Photopic) lumen LED light with a low wind-load profile.

  • A 2kWh battery pack to provide 12 hours of runtime for light.

  • Two USB charger ports for charging of cell phones or PDAs.

  • Outriggers for stabilization on site.

  • Palette 5" x 6" stackable for sea or air transport

  • Options:
    • 3kW Inverter 120V or 240V
    • 2kW additional battery bringing total storage to 4kWh


Solar Generator with Battery Storage and Light as Towable and Portable Cart

Push and towable Solar Generator includes an 8 feet light pole and 50,000 Scotopic lumen LED light with batteries, collapsible light tower, two USB charger outputs for cell phones and a runtime of 12 hours.

A self contained Solar Generator on a towable cart with a (standard) 2kWh long life battery that can keep its full charge for up to 9 months. The batteries can be stored once fully charged for up to 6 years. However, have to receive at least one full charge before use after a prolonged storage.

Ideal for situations where a portable power source is needed and where there is no availability of line power or gas to run a conventional power generator.

The size and construction allows the carts to be stacked and palletized for easy shipping by road or sea.

For higher power demands multiple carts can act in concert increasing site power availability.


Technical Information

Solar Panel315W @ 800W/m2
Batteries2kWh (4kWh option)
Light FixtureHMT-160W

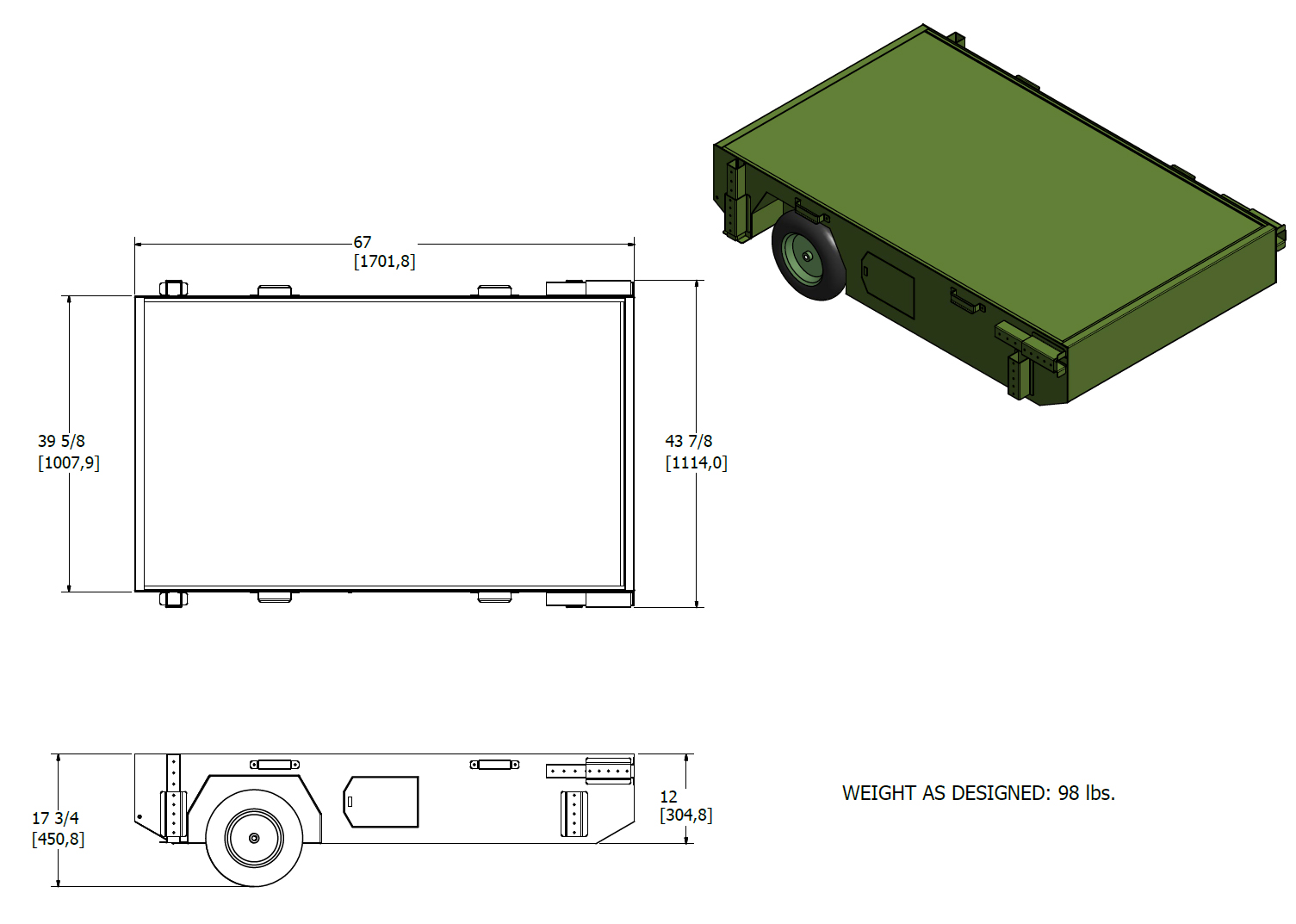

Stackable Size5.6'x 4' without hitch adapter

Caution! All specifications published herein are subject to change without notice. See website ActiveLED.com for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale-technology.com for Terms and Condtions of Sale and Service.
