Programmable Constant Current 50 Watt DC-DC Power Source for LED Lighting


  • Current adjustable 50 Watt DC-DC constant current output power supply for ActiveLED® Lighting and other lighting Fixtures

  • Programmable constant current from 330mA to 4000mA accomodates a large range of LED modules and applications (output max. 60 Volts)

  • Capable of driving one ActiveLED light fixtures withoput power supply, up to a maximum of 50 Watts of LEDs

  • Fully potted with UL rated potting compound makes the device suitable for wet and damp locations.

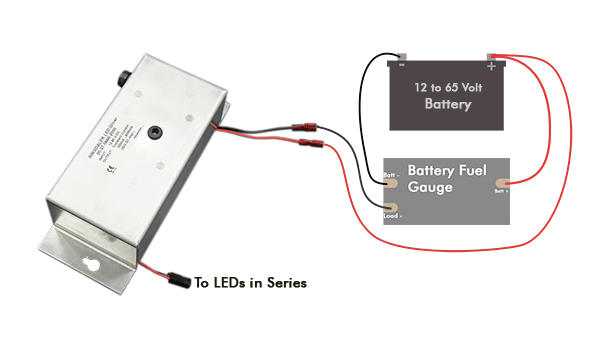

  • Can be used as 12V DC, 24V DC, 48V DC or 60V DC input to constant current LED driver.

  • User replaceable fuse for battery and fire protection.

  • Designed and manufactured in USA



Programmable Constant Current 50 Watt DC-DC Power Source for LED Lighting

50 Watt DC-DC programmable Constant Current Power Source for ActiveLED® Lighting Fixtures - 12 to 48 Volts DC input to Constant Current DC LED Driver

The 50 watt DC-DCPower Source has been designed to power ActiveLED® Lighting fixtures that have been configured without an individual power supply / driver.

The ActiveLED DC-DC Power Source can drive one string of LEDs from its programmable current source. It can be adjusted from 330mA to 4000mA to accommodate a wide range of LED arrangements with a maximum output voltage of 60 Volt.

The purpose of the device is to adjust the current to the correct drive current for the LED array or below if a lower light output is desired.

ActiveLED® Technology

Ringdale uses the latest in energy efficient semiconductor devices and in-house wound high-performance inductors.
This technology achieves optimized run-times on batteries that were previously feeding the LEDs with a constant voltage, overdriving the LEDs.

ActiveLED® Warranties

We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements and fixtures, 5 years on power supplies, including this DC-DC power source.

Ringdale is an ISO 9001:2008 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

ActiveLED® DC-DC Constant Current LED Driver Part Number: 00-27-0660-2000


Technical Information

Input Voltage:12 to 60 Volt DC
Maximum Output (mA):One current-controlled output, adjustable up to 4000mA
Maximum Output (LED watts):One current-controlled output, up to 50 LED Watt
Operating Temperature:-40..+60°C (-40..+140°F)
Listings:CE, RoHS compliant, suitable for damp or wet locations.
Conforms to FCC Part 15.19 Subpart B Class A
Dimensions:3.5" x 6.0" x 2.4"
(8.9 x 15.2 x 6.1 cm
Weight:1.6 lbs / 0.7 Kg
Part Number:00-27-0660-2000
