Top Mounting Bracket Assembly Complete 56


  • Top Mounting Bracket Assembly Complete for ActiveLED® BillBoard or Flood Lights - Stainless Steel Powder Coated

  • Mount a fixture to the top of an existing Billboard or Sign and 54" out from the face

  • Powder-Coated Stainless Steel costruction for longevity, available in 8", 11" and 13.25" sizes for ActiveLED Billboard or Flood Lights

  • Bracket Assembly utilizes a 0.43" diameter hole (11.0 mm) at one end to facilitate easy installation of the billboard or flood light's 10mm Allthread bolts

  • Pre-drilled for easy installation to the back of an existing billboard or sign, sign-mounting hardware not included

  • ActiveLED® - Environmentally Safe Lighting:
    • Zero mercury content
    • Eliminates disposal of
    hazardous materials
    • Facilitates LEED® points

  • Optional ActiveLED controls for additional energy savings:
    • Motion Sensor
    • Daylight Sensor
    • Digital Rotary Dimmer
    • LightSpace Manager
    • Battery Backup for
    emergency lighting

  • Energy Saving Example:
    An ActiveLED Billboard Lighting System of 300 watts (4 x 75 watt fixtures) that is dimmed down to light level 50, for example after 2 am when it is very dark and traffic is light, consumes just 48 watts (16% of 300 watts), saving 252 watts, 84%



Top Mounting Bracket Assembly Complete for ActiveLED® BillBoard or Flood Lights - Mounts the fixture to the top of an existing Billboard and 54" from the face, available in 8", 11" and 13.25" sizes

Sturdy design top-mounts ActiveLED Billboard or Flood Lights - allows precise rotational adjustment of the light fixture to the target

Easy installation of the mounting bracket onto the back of an existing billboard is achieved using suitable bolts throught the mounting bracket and into the back of the billboard or sign (mounting bolts not supplied).

The ActiveLED Billboard or Floodlight is also easily installed utilizing the hole at one end of each arm of the bracket to accept the fixture's 10mm Allthread mounting bolts.

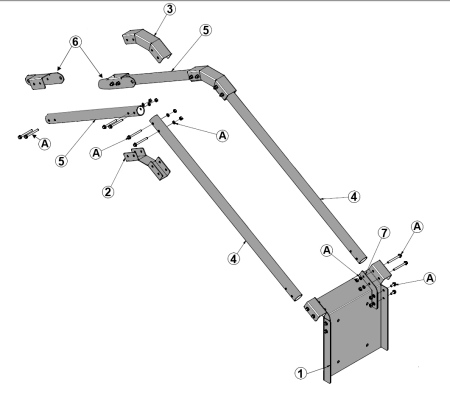

The following is a schematic of the mounting bracket assembly which allows the attached fixture to be easily rotated to the optimum position for illuminating the billboard / sign, bracket available in three sizes to accommodate 8", 11" or 13.25" fixtures.

00-27-0002-0001-1

ActiveLED® Bracket Assembly 00-27-0002-0001-x Kit Contents:

Provided in Kit Form for ease and efficiency of shipping and handling:

• Item (5) - Upper Arm (qty 2)
• Item (4) - Lower Arm (qty 2)
• Item (1) - Mount Plate (qty 1)
• Item (2) & (3) - Upper and Lower Saddle Connectors (2 pairs)
• Item (6) - End Mounting Tip (qty 2)
• Item (7) - Angled Brace (qty 2)
• Item (A) - Stainless Steel Mounting Hardware (various)

ActiveLED® Technology

Ringdale uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than HID light fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED® Diffuser Technology

The Ringdale ActiveLED light fixtures use state-of-the-art diffuser technology with a minimal amount of light loss within the fixture providing for maximum lighting efficiency.

ActiveLED® Warranties

We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements, fixtures, drivers and this Mounting Bracket.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

ActiveLED® Top Mounting Bracket Assembly Numbers:

00-27-0002-0001-1, mounts a 11" fixture 54" from the face of the sign
00-27-0002-0001-3, mounts a 13.25" fixture 54" from the face of the sign
00-27-0002-0001-8, mounts a 8" fixture 54" from the face of the sign


Technical Information

Construction Materials:All Stainless Steel Construction:
• Arms - 1.5" O/D
• Mount Plate - 12 GA Stainless Steel
• Stainless Steel hardware
Dimensions:• Arms - Suspend fixture ~ 54" from rear of billboard / sign.
• Mount Plate - 10.25" x 11.50", mount holes (4 @ 0.4" diameter) on 6.25" / 7.78" centers
Kit Contents:Kit Form for ease and efficiency of shipping and handling:
• Upper Arm (2)
• Lower Arm (2)
• Mount Plate (1)
• Upper and Lower Saddle Connectors (2 pairs)
• End Mounting Tip (2)
• Angled Brace (2)
• Stainless Steel Mounting Hardware (various)
Not included:ActiveLED Light Fixture, Hardware to mount bracket to billboard / sign
Weight:18.1 lbs (8.2 Kg)
Suitability:ActiveLED® Billboard or Flood Light Fixtures, 8", 11" or 13.25" sizes
Part Numbers:00-27-0002-0001-1 for 11" fixtures
00-27-0002-0001-3 for 13.25" fixtures
00-27-0002-0001-8 for 8" fixtures
