TWL-S Series ActiveLED® Off-Grid Solar Lights - Illuminates Hiking Trails, Paths and Walkways


  • TWL-S Series ActiveLED® Trail / Walkway Light - Significantly longer run times and cycle life compared to other Off-Grid solutions

  • Ideal applications include:
    • Hiking Trails
    • Walkways
    • Other outdoor applications
    • May also be suitable for
    minor roadways

  • Improved light quality, illumination and uniformity provide a safer, more secure environment

  • Lumen Lifetime of 90,000 hours (90% Luminous Flux)

  • In-Situ programming using optional EDSaP IR link in conjunction with Windows application software

  • Optional Motion Sensing and Dimming energy management features:
    • provides additional
    energy savings and
    extended battery life

  • Easily mounts on an outdoor pole using the built-in round pole adapter with an Outer Diameter (O/D) of 1" to 2", round arm bracket not included

  • Choice of Silver, Charcoal Grey, White, Bronze or Brown finish. Custom colors available on request



TWL-S Series ActiveLED® Off-Grid Solar Lights illuminate Hiking Trails and Walkways while eliminating light pollution

A solar light with built in charger that is cost effective to install - Light output of 2800lm from 28 Watt total fixture wattage produces light similar to a 300 Watt incandescent light bulb or 150 Watt HID.

The ActiveLED® TWL-S series are energy efficient, high performance LED fixtures for illuminating outdoor Hiking Trails, Walkways and other pedestrian areas. May also be suitable for minor roadways.

The ActiveLED® Off-Grid Solar Trail / Walkway Light consumes at least 50-85 percent less energy than conventional lighting and has a motion sensor that provides additional energy savings.

With its patented design and superior LED elements, the ActiveLED Off-Grid Solar Trail and Walkway Light is a reliable light source with a 90,000-hour lumen life, making it a maintenance-free solution for applications where changing bulbs and ballasts can be hazardous and expensive.

The ActiveLED TWL-S series lights have a light pattern that efficiently illuminates the hiking trail / walkway and minor roadway to the left and right of the fixture while eliminating light pollution, full cut-off and dark-sky compliant.

Significant energy savings are achievable from the device's daylight sensor and optional motion sensor.

TWL-S Series Product Overview

ActiveLED provides three versions of Professional ActiveLED Off-Grid Solar Trail and Walkway Light Fixtures:

Product Code

Fixture Color

Application

Light Output

Suggested Mount Height

TWLS-5024BZ

Bronze

Trails, Walkways, Minor Roadways

2,800 Lumens

4.0 m / 13 ft

TWLS-5024SL

Silver

Trails, Walkways, Minor Roadways

2,800 Lumens

4.0 m / 13 ft

TWLS-5024BR

Brown

Trails, Walkways, Minor Roadways

2,800 Lumens

4.0 m / 13 ft

ActiveLED® Similar Products

ActiveLED offers a wide variety of Solar Lighting Products constructed with the most advanced lighting technology available today.

ActiveLED® Technology

ActiveLED uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than the latest iteration of fluorescent fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED® Diffuser Technology

We use state-of-the-art diffuser technology with a minimal amount of light loss within the fixture providing for maximum lighting efficiency.

ActiveLED® Warranties

We provide mechanically robust outdoor and indoor lighting systems; our warranties are 10 years on LED elements and fixtures, 10 years on off-grid solar power supplies.

ActiveLED is an ISO 9001:2008 company, registered under BSI certificate FM-01880. ActiveLED provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

NOTE: Pole and Round Arm Bracket are not included in the price.

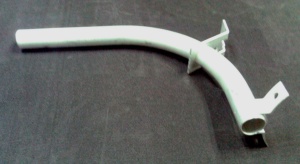

The Round Arm Bracket is part number 00-27-0002-0005 and can be ordered separately, pictured below.

Round Bracket Arm

TWL Series sample Part Numbers:

00-27-1614-5527, Charcoal Grey Trail Light.
00-27-1614-5528, Silver Trail Light.
00-27-1614-5529, Brown Trail Light.

00-27-0002-0005, Round Arm Bracket.


Technical Information

Input Voltage:• Auto-sensing 12, 24 or 48V DC
• 48V DC recommended
Power Statistics:• 25 Watt fixtures
• 24 Watt LEDs
Power Efficiency:> 95% at 48 Volts
>85% at 12Volts
Listings & Tests:CE, suitable for wet locations.
RoHS compliant. IP66 rated.
LM-79 and LM-80 info available.
Dark Sky Compliant.
Conforms to FCC Part 15.19 Subpart B Class A
Operating Temperature:-58° F to +149° F (-50° F to +65° C)
Dimensions:6" W x 4" H x 17" L(15.2 x 10.2 x 43.2 cm)
Weight:12.0 lbs (5.4 Kg)
CCT Color Temperature:5000K, in accordance with ANSI C78.377A
