Mounting Bracket Assy, Mounts one or two ActiveLED® Remote Motion Sensors on a round, octagonal or hexagonal pole


  • Mounting Bracket Assy, Mounts one or two ActiveLED® Remote Motion Sensors on a Round, Octagonal or Hexagonal pole - accommodates from 4" to 6" diameter poles

  • All key components are 12 Gauge 304-2B unpainted Stainless Steel for longevity

  • Bracket Assembly contents
    • Sensor Support/Pole Clamp (2)
    • Assorted bolts, nuts & washers to mount supports to pole

  • Prerequisites:
    Remote Motion Sensors sold separately

  • Available in Unpainted Stainless Steel for longevity

  • ActiveLED - Environmentally Safe Lighting:
    • Zero mercury content
    • Eliminates disposal of
    hazardous materials
    • Facilitates LEED® points

  • ActiveLED - Available fixture options for even greater energy savings:
    • Motion Sensor
    • Daylight Sensor
    • Dimming capabilities

    EXAMPLE:
    A 75 Watt ActiveLED Streetlight that is dimmed down to light level 40, when there is no motion sensed, consumes just 6.75 Watt (9% of 75 Watt), saving 68.25 Watt, 91%



Mounting Bracket Assy, Mounts one or two ActiveLED® Remote Motion Sensors on a Round, Octagonal or Hexagonal pole - accommodates from 4" to 6" diameter poles

For applications where pole-mounted ActiveLED® lighting systems need to be digitally managed using ActiveLED motion sensing and dimming

Sturdy design mounts one or two ActiveLED Remote Motion Sensors or IR Receivers onto a Round Pole, particularly where drilling holes in the pole is impossible or inadvisable, since the mounting clamps around the pole and negates the need for drilling holes.

The Mounting Bracket Assembly is designed for easy installation with all parts pre-drilled and ready for assembly. The structural parts are sturdily made from 12 gauge 304-2B Stainless Steel for longevity.

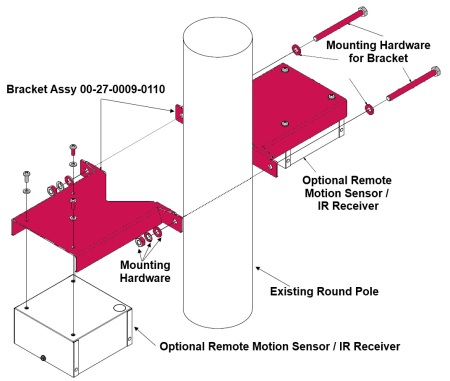

Schematic of the Mounting Bracket Assembly

Installing the Sensor Mounting Bracket is a very simple and straightforward process.
The bracket "clamps" around the round pole using four high-tensile bolts and one or two ActiveLED Remote Motion Sensors are attached to the underside of the bracket with four threaded screws each.
The following scematic outlines the main components of the sensor mounting bracket.

00-27-0009-0110

Sensor Mounting Bracket Contents

● Sensor Support / Pole Clamps (2)
● Assorted bolts, nuts and washers to clamp the two supports to the pole

ActiveLED® Technology

Ringdale uses the latest in energy efficient LEDs and LED modules producing equivalent or greater light output than fluorescent (HID) fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED® Warranties

We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements, fixtures and this Sensor Mounting Bracket Assy, 5 years on power supplies.

Ringdale is an ISO 9001:2008 company, registered under BSI certificate FM-01880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

Prerequisites:
Remote Motion Sensors sold separately.

Motion Sensor Mounting Bracket Assy Part Number:

00-27-0009-0110, Unpainted Stainless Steel


Technical Information

Construction Material:All key components are 12 Gauge 304-2B unpainted Stainless Steel
Kit Contents:• Sensor Support / Pole Clamp (2)
• Assorted bolts, nuts and washers to clamp support to pole
Clamp Dimensions overall:9.0" L x 6.6" W x 1.5" H(22.9 x 16.8 x 3.8 cm)
Total Weight:~ 2.2 lbs complete (1.0 Kg)
Prerequisites:Remote Motion Sensors sold separately
Pole Sizes:Accommodates from 4" to 6" diameter poles
Bracket Color:Optionally can be powder coated to match the color of the attached pole
