Swivel Mounting Brackets for ActiveLED® 8.25


  • Swivel Mounting Brackets for ActiveLED® Compact Series Flood / Spot Lights - suitable for the 8.25", 11.0" and 13.25" long fixtures

  • Mounting Brackets support ActiveLED 8.25", 11.0" and 13.25" "large extrusion" Compact Flood / Spot Lights

  • Pre-drilled baseplate facilitates easy installation

  • Bracket utilizes slots to facilitate easy installation of the floodlight's 10mm Allthread bolts

    Clever design for either "in-line" installation or flip the bracket around for a 1.5" offset to clear existing structures

    Offset versions provide 4.6" centerline clearance from mounting structure, 5.4" maximum

  • Swivel Bracket allows precise rotational adjustment of the light fixture to the task:
    • Up and down rotational
    adjustment using the fixture's
    Allthread mounting bolts

    • Side to side Swivel
    adjustment using bracket's
    central mounting point

  • Unpainted Stainless Steel costruction for longevity, complements most applications

  • Environmentally Safe Lighting:
    • Zero mercury content
    • Eliminates disposal of
    hazardous materials
    • Facilitates LEED® points

  • Optional ActiveLED controls for additional energy savings:
    • Motion Sensor
    • Daylight Sensor
    • LightSpace Manager
    • Battery Backup for
    emergency lighting



Swivel Mounting Brackets for ActiveLED® Compact Series Flood / Spot Lights - suitable for the 8.25", 11.0" and 13.25" long fixtures

Swivel Mounting Brackets provide flexible mounting options for ActiveLED® 8.25", 11.0" and 13.25" long Compact Flood Lights

Sturdy design mounts ActiveLED Series Compact Flood / Spot Lights and allows precise rotational adjustment of the light fixture.

Easy installation of the Swivel Bracket is achieved with a pre-drilled baseplate. The flood light is also easily installed utilizing the hole at one end of the bracket and the slot at the other end to accept the fixture's 10mm Allthread mounting bolts.
Clever "in-line" design for either straight installation or flip the bracket around for a 1.5" offset to clear existing structures.

Overview of ActiveLED® Swivel Mounting Brackets

The Swivel Mounting Brackets are available in three sizes to accommodate the 8.25", 11.0" and 13.25" Series Compact Flood / Spot Lights.

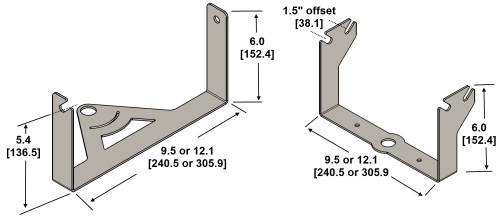

A second choice of swivel bracket facilitates an installation where the mounting point is against a structure or pole and the light fixture needs to be offset from the installation point by 4.6" centerline, 5.4" maximum. The following schematic outlines the overall dimensions of the various versions of these swivel mounting brackets.

00-27-0004-0006

ActiveLED® Technology

Ringdale uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than HID light fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED® Diffuser Technology

The Ringdale ActiveLED light fixtures use state-of-the-art diffuser technology with a minimal amount of light loss within the fixture providing for maximum lighting efficiency.

ActiveLED® Warranties

We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements, fixtures and these Swivel Mount Brackets, 5 years on power supplies.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

ActiveLED® Swivel Mounting Brackets Part Number:

00-27-0004-0006, for an 8.25" Fixture, Straight Mount, Unpainted Stainless Steel
00-27-0004-0006-1, for an 8.25" Fixture, Offset 4.6" Mount, Unpainted Stainless Steel

00-27-0004-0007, for an 11.0" Fixture, Straight Mount, Unpainted Stainless Steel
00-27-0004-0007-1, for an 11.0" Fixture, Offset 4.6" Mount, Unpainted Stainless Steel

00-27-0004-0013, for a 13.25" Fixture, Straight Mount, Unpainted Stainless Steel


Technical Information

Construction Material:11 GA 304-2B unpainted Stainless Steel for longevity
Dimensions, 8.25" Straight version:9.5" overall length, 6.0" high, 1.5" wide (24.1 x 15.2 x 3.8 cm)
Dimensions, 8.25" Offset version:

Weight, 8.25" version:
9.5" overall length, 6.0" high, 5.4" wide, 4.6" offset from centerline
(24.1 x 15.2 x 13.7 x 117.5 cm)

1.1 lbs (0.5 Kg)
Dimensions, 11.0" Straight version:12.1" overall length, 6.0" high, 1.5" wide (30.6 x 15.2 x 3.8 cm)
Dimensions, 11.0" Offset version:

Weight, 11.0" version:
12.1" overall length, 6.0" high, 5.4" wide, 4.6" offset from centerline
(30.6 x 15.2 x 13.7 x 117.5 cm)

1.3 lbs (0.6 Kg)
Dimensions, 13.25" Straight version:15.4" overall length, 6.0" high, 1.5" wide (39.1 x 15.2 x 3.8 cm)
Dimensions, 13.25" Offset version:

Weight, 13.25" version:
15.4" overall length, 6.0" high, 5.4" wide, 4.6" offset from centerline
(39.1 x 15.2 x 13.7 x 117.5 cm)

1.5 lbs (0.7 Kg)
Suitability:ActiveLED® 8.25", 11.0" and 13.25" large extrusion Compact Flood / Spot lights

Caution! All specifications published herein are subject to change without notice. See website ActiveLED.com for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale.com for Terms and Condtions of Sale and Service.
