Central Hang / Suspend Assy for An ActiveLED®  40


  • Central Hang / Suspend Assembly for an ActiveLED® 40" Floodlight - Centrally suspends a Floodlight or BillBoard light on a solid central downpipe

  • Ideally suited for installation of ActiveLED Flood or BillBoard Lights where precise adjustment of the fixture is required to illuminate the task - the fixture can be adjusted through 90° using the Allthread end-bolts

  • Prerequisites
    An ActiveLED 40" Flood or BillBoard series light for attaching to the Mounting Bracket Assembly (down-pipe not included)

  • Optional IR Receiver allows the fixture to be remotely reprogrammed, including maximum and minimum (resting) light levels and timers for the motion sensor

  • Available in Unpainted Stainless Steel. Optional Brown, Silver, Bronze or Charcoal Grey to match the color of the attached light fixtures

  • ActiveLED - Environmentally Safe Lighting:
    • Zero mercury content
    • Eliminates disposal of
    hazardous materials
    • Facilitates LEED® points

  • ActiveLED - Available options for even greater energy savings:
    • Motion Sensor
    • Daylight Sensor
    • Dimming capabilities

    EXAMPLE:
    A 75 Watt ActiveLED Flood Light that is dimmed down to light level 40, when there is no motion sensed, consumes just 6.75 Watt (9% of 75 Watt), saving 68.25 Watt, 91%



Central Hang / Suspend Assembly for an ActiveLED® 40" Floodlight - Centrally suspends a Floodlight or BillBoard light on a solid central downpipe

Central Hang / Suspend Assembly provides flexible mounting options for one ActiveLED® 40" Flood or BillBoard Light to a ceiling structure.

Sturdy design mounts one ActiveLED 40" Flood or BillBoard Light (using their "Allthread" end-bolts) horizontally to a solid downpipe. The mounting assembly allows the light fixture to be adjusted through 90° to provide precise rotational adjustment of the light fixture with the task, even with the AC cabling and optional Communications cables attached.

The Central Hang / Suspend Assembly is designed for easy installation with all parts pre-drilled and ready for assembly. The assembly is sturdily made from 11 gauge 304-2B Stainless Steel and includes an integrated "Junction Box" for an all-inclusive solution.

The Central Hang Assembly design theme is a curved "awning" or hood that adds an aesthetically pleasing finish to the overall bracket assembly, as well as providing some protection from the elements.

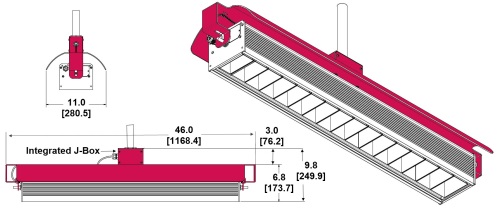

Detailed Schematic of the Central Hang Assembly

00-27-0007-0100

Central Hang Assembly Assembly Contents

● Top Hood / Awning Assy (qty1)
● Integrated Cental Support / J-Box (qty1)
● Assorted High-tensile stainless steel bolts, nuts & washers

ActiveLED® Floodlights and BillBoard Lights

Select the appropriate 40" Flood or BillBoard light that best meet the application from the comprehensive Ringdale ActiveLED range, including:
● 24, 48, 72 or 96 Watt Fixtures
● Traditional, Wide, Xtra-Wide, Billboard, FlagPole Light Pattern
● Standard or Clear Second Diffuser
● Energy Management Options

Please refer to the separate Flood or BillBoard series datasheets for more details.

ActiveLED® Technology

Ringdale uses the latest in energy efficient LEDs and LED modules producing equivalent or greater light output than fluorescent (HID) fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED® Warranties

We provide mechanically robust outdoor and indoor lighting systems; our warranties are 10 years on LED elements, fixtures, Power Supplies / Drivers and this Mounting Bracket Assembly.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

NOTES:
● Requires ActiveLED 40" Flood or Billboard series lights.
● Down-pipe and Light Fixture not included in kit, light fixtures sold separately.

Central Hang / Suspend Assembly Part Number:

● 00-27-0007-0100, Unpainted Stainless Steel

● 00-27-0007-0100A, Stainless Steel painted Silver


Technical Information

Construction Material:All key components are unpainted T-304 Stainless Steel
Kit Contents:• Top Hood / Awning Assy (qty1)
• Integrated Cental Support / J-Box (qty1)
• Assorted High-tensile stainless steel bolts, nuts & washers

NOT INCLUDED: Down-pipe, Light Fixtures
Dimensions:• Overall length = 46.0" (116.8cm)

• Overall width = 11.0" (28.1 cm)

• Suspends fixture 9.8" below end of down-pipe (25.0 cm)
Total Weight:??? lbs complete (???? Kg)
Downpipe Installation:Central Mount will accept a 1-1/4" downpipe.
Downpipe secured using a nut above and below the Junction Box
Prerequisites:An ActiveLED Flood or Billboard light fixture, fixtures sold separately
Part Numbers:00-27-0007-0100, Unpainted Stainless Steel
