Universal-G Pole Mounting Bracket Assy, Horizontally Mounts one ActiveLED® 40


  • Universal-G Pole Mounting Bracket Assy - Horizontally Mounts one ActiveLED® 40" Flood Light or BillBoard Light to a Square Pole or Flat Surface

  • Ideally suited for installation of ActiveLED Flood or BillBoard Lights where precise adjustment of the fixture is required to illuminate the task - the fixture can be adjusted through 90° using the Allthread end-bolts

  • Prerequisites
    • Requires an ActiveLED 40" Flood or BillBoard series light for attaching to the Mounting Bracket Assembly

    • Attaching to a round or hexagonal pole will require Adapter kit 00-27-0009-0100

  • Versatile design can also be used to mount the light fixture to a vertical wall or structure

  • Optional IR Receiver allows the fixture to be remotely reprogrammed, including maximum and minimum (resting) light levels and timers for the motion sensors

  • Available in Unpainted Stainless Steel. Optional Brown, Silver, Bronze or Charcoal Grey to match the color of the attached light fixtures

  • ActiveLED - Environmentally Safe Lighting:
    • Zero mercury content
    • Eliminates disposal of
    hazardous materials
    • Facilitates LEED® points

  • ActiveLED - Available options for even greater energy savings:
    • Motion Sensor
    • Daylight Sensor
    • Dimming capabilities

    EXAMPLE:
    A 75 Watt ActiveLED Flood Light that is dimmed down to light level 40, when there is no motion sensed, consumes just 6.75 Watt (9% of 75 Watt), saving 68.25 Watt, 91%



Universal-G Pole Mounting Bracket Assy - Horizontally Mounts one ActiveLED® 40" Flood or BillBoard Light to a Square Pole or Flat Surface

Pole Mounting Bracket Assembly provides flexible mounting options for one ActiveLED® 40" Flood or BillBoard Light to a square pole or wall

Sturdy design mounts one ActiveLED 40" Flood or BillBoard Light (using their "Allthread" end-bolts) horizontally to a square pole via four high-tensile bolts (bolts included). The light fixture can be adjusted through 90° to provide precise rotational adjustment of the light fixture with the task.

The Universal-G Pole Mounting Bracket Assembly is ideally suited for installations where it is not possible or inadvisable to drill holes or drive bolts into the Pole.
It is designed for easy installation with all parts pre-drilled and ready for assembly. The Backplate is sturdily made from 11 gauge 304-2B Stainless Steel.

The Universal-G Pole Mounting Bracket Assembly is sufficiently versatile that it can also be used to mount the light fixture to a vertical wall or structure.

The Universal-G bracket includes a curved "awning" or hood that adds an aesthetically pleasing finish to the overall bracket assembly, as well as providing some protection from the elements.

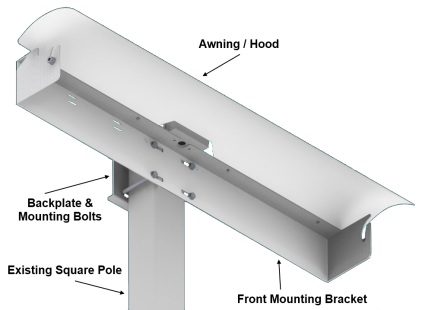

Detailed Schematic of the Universal-G Mounting Bracket Assembly

00-27-0009-0007

Universal-G Pole Mounting Bracket Assembly Contents

• Front Mounting Bracket Assy, pre-drilled (qty 1)
• Backplate, pre-drilled (qty 1)
• Hood / Awning (qty1)
• Assorted High-tensile stainless steel bolts, nuts & washers

ActiveLED® Floodlights and BillBoard Lights

Select the appropriate 40" Flood or BillBoard light that best meet the application from the comprehensive Ringdale ActiveLED range, including:
• 24, 48, 72 or 96 Watt fixtures
• Traditional, Wide, Xtra-Wide or Billboard Light Pattern
• Clear or Etched Second Diffuser
• Energy Management Options

Please refer to the separate Flood or BillBoard series datasheets for more details.

Univeral-G Bracket Assembly Commonality

Bracket Assembly 00-27-0009-0007 is designed to be mounted directly to a Square Pole and it can be combined with another 00-27-0009-0007 or even bracket 00-27-0009-0005 mounted back-to-back on the pole. In this way from one to four light fixtures can be attached to a single pole using commonality of design and mounting hardware, for an aesthetically pleasing installation. The following depicts two flood lights and a single flood light mounted on opposing sides of a single pole.

00-27-0009-0005

Square Pole versus Round Pole Mounting

The Universal-G mounting bracket assembly is designed to be mounted to a square pole. If the pole is round or hexagonal the Round Pole Adapter Kit part 00-27-0009-0100 will need to be ordered separately, one kit per pole, see schematic circled in above image (not to scale), quantity 4 per adapter kit.

ActiveLED® Technology

Ringdale uses the latest in energy efficient LEDs and LED modules producing equivalent or greater light output than fluorescent (HID) fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED® Warranties

We provide mechanically robust outdoor and indoor lighting systems; our warranties are 10 years on LED elements, fixtures and this Mounting Bracket Assembly, 5 years on power supplies.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

NOTES:
• Requires ActiveLED 40" Flood or Billboard series lights.
• Pole and Light Fixtures not included in kit, light fixtures sold separately.

Universal-G Mounting Bracket Assy Part Number:

• 00-27-0009-0007, Unpainted Stainless Steel

• Optional Round Pole Adapter Kit: 00-27-0009-0100


Technical Information

Construction Material:All key components are unpainted T-304 Stainless Steel
Kit Contents:• Front Mounting Bracket Assy (qty 1)
• Backplate, pre-drilled (qty 1)
• Hood / Awning (qty1)
• Assorted High-tensile stainless steel bolts, nuts & washers
NOT INCLUDED: Pole, Light Fixtures
Total Weight:16.4 lbs complete (7.4 Kg)
Dimensions:• Backplate:
7.28" x 5.00" (18.5 x 12.7 cm)

• Front Plate:
41.6" x 5.0" x 2.0" lip (105.6 x 12.7 x 5.1 cm)

• Awning / Hood:
45.3" x 7.7" x 6" radius (115.1 x 19.6 x 15.2 cm)
Pole Sizes:Suitable for mounting on Square Poles from 4" to 10"
(10.2 to 25.4 cm)
Prerequisites:An ActiveLED Flood or Billboard light fixture, fixtures sold separately
Round or Hexagon Pole Adapter:If the mounting pole is round or hexagonal, then Round Pole Adapter Kit
part 00-27-0009-0100 will need to be ordered separately, one kit per pole
Part Numbers:00-27-0009-0007, Unpainted Stainless Steel
Optional Round Pole Adapter Kit: 00-27-0009-0100

Caution! All specifications published herein are subject to change without notice. See website ActiveLED.com for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale.com for Terms and Condtions of Sale and Service.
