Uses Smart Technology to program / reprogram ActiveLED^® Manageable Lighting equipment in a defined Occupancy Zone / Lighting Network. Parameters that can be reprogrammed include maximum and minimum lighting levels and dimming / duration timers, saving even more energy and therefore cost - 65 feet effective range

ActiveLED^® Lighting consumes at least 50-85 percent less energy than conventional lighting.
With its patented design and superior LED elements, ActiveLED Lighting is a reliable light source with a 90,000-hour lumen life, making it a maintenance-free solution for applications where changing bulbs and ballasts can be hazardous and expensive.

ActiveLED^® Weatherproof Digital IR Receiver

The ActiveLED lighting fixtures in an occupancy zone can be remotely reprogrammed, via the Digital IR Receiver, using the optional ActiveLED Hand-Held Remote Programmer (00-27-0101-0000) from a distance of up to 65 feet (line-of-sight range).

ActiveLED^® Remote Digital IR Receiver Application, including Remote IR Programmer

The Remote Digital IR Receiver is designed to be connected to the communications port of an ActiveLED digitally manageable power supply / fixture.

The IR Receiver (Passive Infra-Red) allows the IR Receiver (and therefore the attached ActiveLED fixtures) to be remotely managed and reprogrammed using the optional ActiveLED Remote Hand-held IR Programmer. For example, if the use of a defined lighting zone needs to be redefined in the Spring and Fall, the maximum and minimum light levels, timers and dimming parameters of the ActiveLED fixtures can all be reprogrammed using the remote Hand-Held IR Programmer from a distance of up to 65 feet.

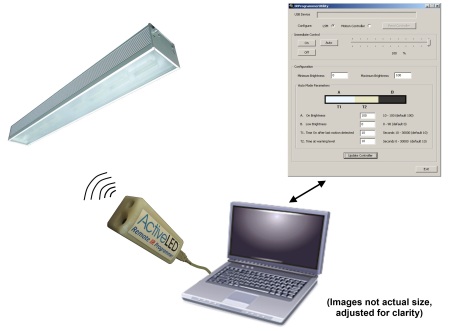

This schematic represents an ActiveLED High Bay Strip light that is installed 35 feet up in the ceiling of a warehouse and is attached to an IR Receiver. In this scenario a Laptop with the IR-Programmer installed is remotely reprogramming the Strip Light using the IR link from the IR Programmer.

ActiveLED^® Occupancy Zone / Lighting "Network"

A group of controlled ActiveLED light fixtures (C-Series power supplies) can be interconnected to form an environmentally safe occupancy zone / lighting network.

The number of ActiveLED lighting fixtures that can be controlled in this way is virtually limitless. Each interconnected LED fixture / power supply relays the setting to the next connected fixture, thereby giving unlimited flexibility in managing the defined ActiveLED occupancy zone.

Installing the ActiveLED^® IR Receiver

Installation is a three-step process:
(1) Secure the top housing of the ActiveLED IR Receiver to a flat surface with two screws (screws not provided).
(2) Attach the outer cover assembly to the housing with two small screws (provided).
(3) Inter-connect the IR Receiver Assy to the nearest ActiveLED light fixture using an ActiveLED 6-conductor communications cable.

ActiveLED^® Brightness Settings and Fixture Power Consumption

Brightness Setting	% Power	ActiveLED® Brightness Settings relative to Fixture Power Consumption
100	100	The ActiveLED system architecture is unique in its efficiency, design and the way the ActiveLED Elements are driven. This chart accurately details the substantial energy savings that can be achieved when deploying a manageable ActiveLED lighting network. Combining this architecture with a LightSpace™ Appliance, including the Remote IR Receiver, provides additional energy savings that are somewhat exponential to the reduced light level. Example One: An ActiveLED High Bay Strip with 104 watts total fixture (96 watts of LEDs) with the brightness dimmed down to brightness level 50, then the total power consumption of that fixture is 16.64 watts (16% of 104 watts) at this brightness level of 50. Example Two: An ActiveLED High Bay Strip with 104 watts total fixture (96 watts of LEDs) with the brightness dimmed down to brightness level 30, then the total power consumption of that fixture is a mere 5.2 watts (5% of 104 watts) at this brightness level of 30. This same chart and percentages not only apply to any of our lighting fixtures with the external dimming controls, including the Rotary Digital Dimmer and the LightSpace Manager, but also to any pre-programmed ActiveLED fixture. Although the light output of ActiveLED fixtures can be dimmed in 2% increments, the chart on the left accurately portrays the percentage power consumption for each increment of 10.
90	80
80	60
70	42
60	28
50	16
40	9
30	5
20	2.5
10	1.5
0	0 (off)

Optional Cables for the Remote Digital IR Receiver

CABLE DESCRIPTION	CABLE PART NUMBER & DETAILS
Cable to digitally connect one IR Receiver to one ActiveLED lighting fixture or one LightSpace Manager.	07-260600xx, available in 5', 10', 20', 30', 40', 50', 70' & 110' lengths. Other lengths available upon request.
Communications Cable to digitally interconnect two ActiveLED lighting fixtures.	07-260664xx, available in 5', 10', 20', 30', 40', 50', 70' & 110' lengths. Other lengths available upon request.

NOTE: Cables not included in the price of the Motion Sensor.

ActiveLED^® Lighting Technology

Ringdale uses the latest in energy efficient LEDs and LED modules producing equivalent or greater light output than fluorescent (HID) fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED^® Warranties

We provide mechanically robust LED lighting systems; our warranties are 10 years on LED elements, fixtures and IR Receivers, 5 years on power supplies.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas and in the United Kingdom.

Part Numbers - Remote Digital IR Receiver:

00-27-0613-0000

00-27-0101-0000, Optional Hand-Held IR Programmer

Technical Information

IR-Receiver Connection to LED Light:	6-pin flat ribbon or UTP cable with RJ-12 Connectors
Inter-Connect, LED to LED Fixture:	4-pin flat ribbon or UTP cable with RJ-11 / RJ-12 Connectors
IR-Receiver Connection to optional LightSpace Appliances:	6-pin flat ribbon or UTP cable with RJ-12 Connectors
Prerequisites:	• ActiveLED C-Type lighting fixture with the Digital Management option (comms ports). • Optional Remote Hand-held LightSpace IR Programmer
Sensing Range: Power:	• IR Receiver up to 65 feet Low voltage DC powered by the attached ActiveLED fixture
Regulatory Compliance:	UL listed, CE, suitable for damp locations. RoHS compliant.
Dimensions: Weight:	4.75" O/D x 1.63" high (12.1 x 4.1 cm) 2 ounces (0.06 Kg)
IR Receiver Part Number: Optional IR Programmer Part Number:	00-27-0613-0000 00-27-0101-0000

Caution! All specifications published herein are subject to change without notice. See website ActiveLED.com for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale-technology.com for Terms and Condtions of Sale and Service.
