FL40-H Series ActiveLED® Area Horizontal 40


  • DLC Certified and Listed versions of ActiveLED Flood Lights are available, please refer to relevant datasheet for specific model numbers.

  • FL40-H Series ActiveLED® High Output Flood Light Area Horizontal Configuration - Designed for large spaces such as Parks, Recreation Areas and Parking Lots, pole mount (up to 40 feet) and long-distance light beam

  • FL40-H Series Area Horizontal Light runs significantly cooler and is therefore much safer to the touch than traditional HID technology

  • High light output and a CCT5000K color temperature provides crisp, bright and even illumination that closely emulates natural daylight to provide a bright and safe place to exercise and play

  • Fraction of conventional lighting costs and very low maintenance cost with a Lumen Lifetime of 90,000 hours (90% Luminous Flux)

  • Available options for even greater energy savings:
    • Daylight Sensor
    • LightSpace® Management

    EXAMPLE:
    A 104 Watt ActiveLED Flood Light that is dimmed down via a Motion Sensor to light level 40, when the park is temporarily not in use for example, consumes just 9.36 Watt (9% of 104 Watt), saving 94.64 Watt, 91%

  • Environmentally Safe Lighting:
    • Zero mercury content
    • Eliminates disposal of
    hazardous materials
    • Facilitates LEED® points

  • Choice of fixture color - Silver, Brown, Bronze, White or Charcoal Grey finish, other colors available on request.

    Precise adjustment of the angle of the 40" Stadium light via the convenient end-mounting bolts (10mm) allows the fixture to be adjusted for maximum lighting effect



FL40-H Series ActiveLED® High Output Area Horizontal Flood Light Configuration - Designed for multiple applications, including Parks, Recreation Areas and Parking Lots, pole mount (up to 40 feet) and long-distance light beam

FL40-H series ActiveLED® Area Horizontal Light is configured for applications where the fixture is installed on tall poles up to 40 feet to illuminate Recreation Areas and Parks.
With a CCT rating of 5000K the ActiveLED Area Horizontal Lights illuminate the playing field evenly with a bright light that closely emulates the color of natural daylight, making night-time playing a day-time experience.

The FL40-H Series ActiveLED® Area Horizontal Light consumes at least 75-90 percent less energy than conventional lighting.
With its patented design and superior LED elements, the ActiveLED Area Horizontal Light is a reliable light source with a 90,000-hour lumen life (90% Luminous Flux), making it a maintenance-free solution for applications where changing bulbs and ballasts can be hazardous and expensive.

ActiveLED flood lighting solves the problems of energy wastage, light pollution and maintenance. The design has optimized water management and cooling to be effective in the hottest of climates as well as performing without degradation down to -58° F (-50° C).

Significant additional energy savings can be achieved by deploying the device's optional daylight sensor, motion sensor and remote energy management features.

No matter what kind of recreation area you have - we have the right light fixtures to provide a bright and safe place to exercise and play.

All the available light is directed onto the playing field.
The employed technology delivers very precise light cut-off, virtually eliminating any light pollution and overspill.
International Dark-Sky Association full cutoff compliant (when installed correctly).
Fixture runs significantly cooler and is therefore much safer than traditional HID technology.

FL40-J Series Stadium Light Product Overview

Ringdale provides the ActiveLED Stadium Lights in a choice of fixture colors and wattages for varying applications:

Product Code

Application

Fixture Wattage

Light Output

Suggested Mount Height

FL40H-5096CG

Area Floodlight, C-Grey

104 watts

9,110 Lumens

13 m / 40 ft

FL40H-5096BR

Area Floodlight, Brown

104 watts

9,110 Lumens

13 m / 40 ft

FL40H-5096WH

Area Floodlight, White

104 watts

9,110 Lumens

13 m / 40 ft

FL40H-5096SL

Area Floodlight, Silver

104 Watt

9,110 Lumens

13 m / 40ft

ActiveLED® Technology

Ringdale uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than HID light fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED® Diffuser Technology

We use state-of-the-art diffuser technology with a minimal amount of light loss within the fixture providing for maximum lighting efficiency.

FL40-J Area Horizontal Light Mounting / Installations

The actual area to be illuminated and pole mounting heights will determine the quantity and orientation of ActiveLED flood light fixtures required on each pole.

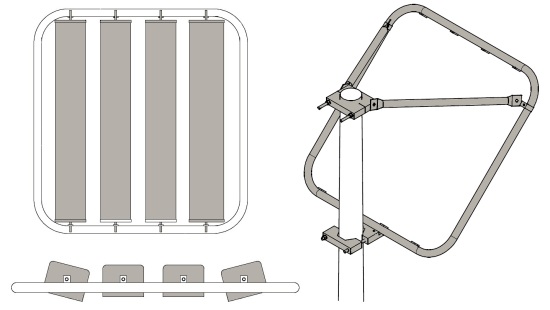

The following schematic is an example of just four Area Horizontal lights mounted on an ActiveLED bracket that provides full adjustment of each light fixture in both the vertical and horizontal axis to achieve the desired lighting pattern and intensity.

00-27-1611-5999

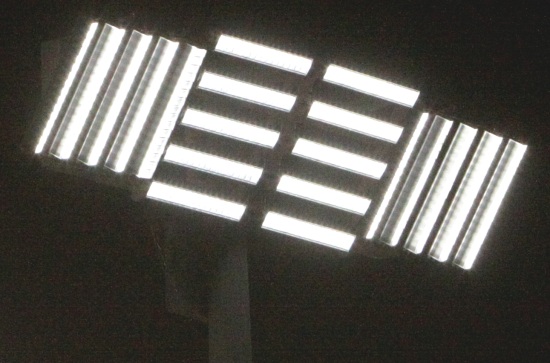

The following night-time picture - a single pole with 20 ActiveLED Area Horizontal Lights - is part of the illumination of a Baseball field.
In this example 2,080 Watt of ActiveLED lighting has replaced 12,000 Watt of legacy HID bulbs per pole, an instant energy saving of 82.7% (9,920 Watt). The pole is barely visible just below the lighting jewelry.

00-27-1611-5999

ActiveLED® Warranties

We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements, fixture and power supplies / drivers.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

NOTE: Mounting hardware is not included in the price.

ActiveLED® FL40-H Series Area Horizontal Light Sample Part Numbers:

FL40U-AT-HF5096CG, 104 Watt Charcoal Grey
FL40U-AT-HF5096BR, 104 Watt Brown
FL40U-AT-HF5096WH, 104 Watt White
FL40U-AT-HF5096BZ, 104 Watt Bronze
FL40U-AT-HF5096SL, 104 Watt Silver


Technical Information

Input Voltage:• Auto-sensing 100..277V AC, 50/60 Hz
• Digital Power Source, dedicated circuit strongly recommended
• Optional 350..480V AC 50/60 Hz Power Supply
Operating Temperature:

Power Factor:
-58° F to +149° F (-50° C to +65° C)

> 0.95 (at 208 Volts AC)
CCT Color Temperature:5000K in accordance with ANSI C78.377A
Light Output Equivalent:Up to 1,000 Watt HPS / HID fixture
Mounting Height:

Effective Coverage:
Up to 40 feet

Up to 1,000 Square feet
Dimensions:40"(l) x 6.1"(w) x 4.8"(h)(101.6 x 15.5 x 12.2)
Weight:28 lb (12.7 Kg)
Listings and Tests:cUL Listed Driver, suitable for damp locations.
TM21 based on CALIPER ISTM Test to UL1598
CALIPER LM-79 Report, LM-80 info available
CE File, RoHS compliant, IP66 Rated.
Conforms to FCC Part 15.19 Subpart B Class A

Caution! All specifications published herein are subject to change without notice. See website ActiveLED.com for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale-technology.com for Terms and Condtions of Sale and Service.
