Mounting Bracket (pair) For ActiveLED® Billboard Light Fixtures


  • Sturdy bracket design mounts an ActiveLED® Billboard Light in the correct orientation to suit most billboard applications

  • Mounting Bracket (pair) supports an ActiveLED Billboard Light

  • Each Bracket utilizes a 0.43" diameter hole (11.0 mm) at one end to facilitate easy installation of the billboard light's 10mm Allthread bolts

  • Each bracket is designed to be clamped using u-bolts (not supplied) onto the Catwalk of the Billboard for easy installation

  • Painted Steel costruction for longevity, complements most applications

  • Environmentally Safe Lighting:
    • Zero mercury content
    • Eliminates disposal of
    hazardous materials
    • Facilitates LEED® points

  • Optional ActiveLED controls for additional energy savings:
    • Motion Sensor
    • Daylight Sensor
    • Digital Rotary Dimmer
    • LightSpace Manager
    • Battery Backup for
    emergency lighting

  • Energy Saving Example:
    An ActiveLED Billboard Lighting System of 300 watts (4 x 75 watt fixtures) that is dimmed down to light level 50, for example after 2 am when it is very dark and traffic is light, consumes just 48 watts (16% of 300 watts), saving 252 watts, 84%



Mounting Bracket (pair) For ActiveLED® Billboard Light Fixtures

Mounting Bracket (pair) For ActiveLED® Billboard Light Fixtures - Mounts a Billboard fixture to the catwalk of an existing Billboard

Sturdy design mounts ActiveLED Billboard Lights - allows precise rotational adjustment of the light fixture.

Easy installation of the mounting bracket onto the catwalk is achieved using u-bolts (not supplied). The ActiveLED Billboard light is also easily installed utilizing the hole at one end of each bracket to accept the billboard light's 10mm Allthread mounting bolts.

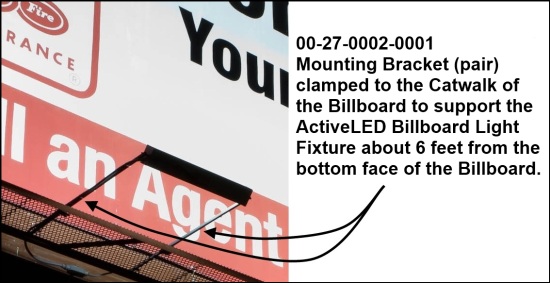

The following is a picture of an actual billboard with a description of how the ActiveLED billboard fixtures are installed using this mounting bracket.

00-27-0002-0001

ActiveLED® Technology

Ringdale uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than HID light fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED® Diffuser Technology

The Ringdale ActiveLED light fixtures use state-of-the-art diffuser technology with a minimal amount of light loss within the fixture providing for maximum lighting efficiency.

ActiveLED® Warranties

We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements, fixtures and this Mounting Bracket, 5 years on power supplies.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

ActiveLED® Mounting Bracket Part Number:

00-27-0002-0001


Technical Information

Construction Material:1.0" Square (2.54 cm) x 11 Gauge painted steel
Dimensions:• Overall length of each piece is 66" (167.6 cm)
• One 0.43" diameter hole (11 mm), 0.5" (12.70 mm) from one end
Kit Contents:Two arms for mounting one Billboard fixture
Not included:Billboard Light Fixture, Hardware to mount brackets to billboard / catwalk
Weight:16 lbs (7.3 Kg)
Suitability:ActiveLED Billboard Light Fixture
Part Number:00-27-0002-0001

Caution! All specifications published herein are subject to change without notice. See website ActiveLED.com for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale.com for Terms and Condtions of Sale and Service.
