Stirrup Mounting Bracket for ActiveLED® 24


  • Sturdy "Stirrup" bracket design mounts an ActiveLED® 24" Flood Light in any orientation to suit most applications

  • Mounting Bracket supports an ActiveLED® 24" "large extrusion" Flood Light

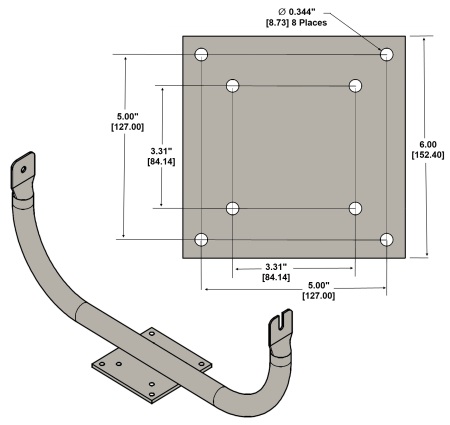

  • Pre-drilled baseplate facilitates easy installation

  • Bracket utilizes a hole at one end and a slot at the other end to facilitate easy installation of the floodlight's 10mm Allthread bolts

  • Unpainted Stainless Steel costruction for longevity, complements most applications

  • Environmentally Safe Lighting:
    • Zero mercury content
    • Eliminates disposal of
    hazardous materials
    • Facilitates LEED® points

  • Optional ActiveLED controls for additional energy savings:
    • Motion Sensor
    • Daylight Sensor
    • Digital Rotary Dimmer
    • LightSpace Manager
    • Battery Backup for
    emergency lighting



Stirrup Mounting Bracket for ActiveLED® 24" Flood Lights

Stirrup Mounting Brackets provide flexible mounting options for Ringdale ActiveLED® 24" "large extrusion" Flood Lights

Sturdy design mounts ActiveLED 24" Flood Lights - allows precise rotational adjustment of the flood light fixture.

Easy installation of the stirrup bracket is achieved with a pre-drilled baseplate. The flood light is also easily installed utilizing the hole at one end of the bracket and the slot at the other end to accept the flood light's 10mm Allthread mounting bolts.

00-27-0007-0001

ActiveLED® Technology

Ringdale uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than HID light fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED® Diffuser Technology

The Ringdale ActiveLED light fixtures use state-of-the-art diffuser technology with a minimal amount of light loss within the fixture providing for maximum lighting efficiency.

ActiveLED® Warranties

We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements, fixtures and this Stirrup Bracket, 5 years on power supplies.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

ActiveLED® Stirrup Bracket Part Number:

00-27-0007-0001


Technical Information

Construction Material:1.5" O/D x 0.065" wall unpainted Stainless Steel for longevity
Dimensions, 24" version:27" overall length, 10.5" high
Weight, 24" version:4.2 lbs (1.9 Kg)
Suitability:ActiveLED 24" "large extrusion" flood light
Part Number:00-27-0007-0001

Caution! All specifications published herein are subject to change without notice. See website ActiveLED.com for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale.com for Terms and Condtions of Sale and Service.
