SL1-SPT Series ActiveLED® Square Pole Top - Street, Parking Lot and Pathway Lights


  • SL1-SPT Series ActiveLED® Square Pole Top Lights - Significant Energy Savings compared to conventional high wattage lighting and very low maintenance costs

  • Ideal applications include:
    • Streets
    • Parking lots
    • Pedestrian areas
    • Other outdoor applications

  • Improved light quality and illumination uniformity, compared to legacy bulb technology.

    • Lumen Lifetime of 90,000 hours (90% Luminous Flux)

  • Choice of CCT Color temperatures to compliment most applications - 2700K, 3000K, 3500K, 4000K or 5000K, in accordance with ANSI C78.377A

  • Environmentally Safe Lighting:
    • Zero mercury content
    • Eliminates disposal of
    hazardous materials
    • Facilitates LEED® points

  • Daylight Sensor included, with manual override switch.
    Optional controls for additional energy savings:
    • Motion Sensor
    • Light Space Manager
    • Battery Backup for
    emergency lighting

    EXAMPLE:
    A 75 Watt ActiveLED Pole Top Light that is dimmed down to light level 40, when there is no motion sensed, consumes just 6.75 Watt (9% of 75 Watt), saving 68.25 Watt, 91%

  • Choice of light fixture wattage, see table for details

  • Choice of Silver, White, Charcoal Grey, Bronze or Brown powder-coat finish.
    Custom colors available on request



SL1-SPT Series ActiveLED® Square Pole Top - Street, Parking Lot and Pathway Lights

Cost effective to install - Light output similar to 150 through 450 Watt legacy light bulb technology - Pole Top mountable

The ActiveLED® SL1-SPT Series Square Pole Top Light consumes at least 50-85 percent less energy than conventional lighting and has a dusk-to-dawn sensor that provides additional energy savings.

With its patented design and superior LED elements, the ActiveLED Square Pole Top light fixture is a reliable light source with a 90,000-hour lumen life, making it a maintenance-free solution for applications where changing bulbs and ballasts can be hazardous and expensive.

The only servicing required is the occasional cleaning of the diffuser, equivalent to the cleaning of conventional street lights.

SL1-SPT Series ActiveLED® Product Overview

Ringdale provides two versions of the ActiveLED SLSPT Square Pole Top Light Fixtures for different applications, each fixture is available in Silver, White, Charcoal Grey, Bronze or Brown powder-coat finish:

Product Code

Application

Light Output

Suggested Mount Height

SL1SPT-5048

Pathway / Parking Lot

~87 Lumens / Watt

4.0 m / 13 ft

SL1SPT-5072

Street / Highway / Parking Lot

~87 Lumens / Watt

6.0 m / 20 ft

The SL-SPT light fixture and the pole-top Mounting Adapter are priced and sold separately.
The adapter is suitable for poles with an outer diameter of 34 mm to 100 mm (1.33" to 3.93"), it attaches to the pole top and is secured with three pinch bolts (supplied).

ActiveLED® SL1-SPT Series Square Pole Top Light Options & Selections

The following is a list of the features and options for the Pole Top Series of fixtures:

OPTIONS

DESCRIPTION

LED Light Output:

24, 48 or 72 Watt LEDs (26, 52 or 75 Watt Fixtures).

Fixture Color:

Silver, White, Charcoal Grey, Bronze or Brown.

Daylight Sensor

Built-in, user enables or disables via switch.

Energy Management:

Optional Motion Sensor, Dimming, IR Receiver.

Driver Options:

AC power only, AC power with Solar Backup or Solar (DC) Only.

Mounting Option:

Mounting Adapter (required) for mounting to the top of a Round Pole
(Ringdale part 00-27-0002-0040).

ActiveLED® Technology

Ringdale uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than fluorescent light fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED® Diffuser Technology

We use state-of-the-art diffuser technology with a minimal amount of light loss within the fixture providing for maximum lighting efficiency.

ActiveLED® Warranties

We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements, fixtures and power supplies / drivers.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

Schematic & Installation of the ActiveLED® Square Pole Top Fixture

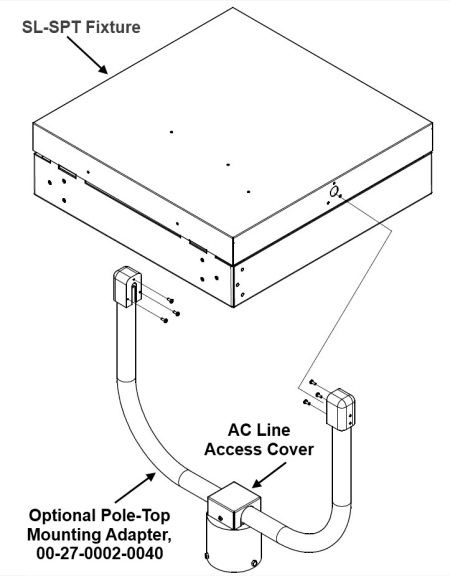

The following schematic shows how the fixture and the mounting adapter are installed onto the top of a round pole.

00-27-6612-SLPT


Installation of the Square Pole Top fixture with the Mounting Adapter is a simple 6-step process, as follows:

STEP

DESCRIPTION

(1)

Attach the Mounting Adapter to the top of the pole, orientate it and secure using the three provided pinch bolts.

(2)

Carefully remove the two screws that secure the top and bottom halves of the SL-SPT fixture to gain access to the mounting bolts and junction box.

(3)

Using the six provided screws, attach the Mounting Adapter to the top half of the fixture.

(4)

Remove the wiring access cover (two screws) and thread the main AC line from the center of the pole up through either of the mounting arms and into the top of the fixture.

(5)

Using appropriate wire-nuts, attach the AC line feed to the AC power supply / driver that is inside the top half of the fixture.

(6)

Reassemble the top and bottom halves of the fixture and secure with the two screws, replace the access cover.

NOTES:
● Pole and Mounting Adapter are not included in the price.
● Mounting Adapter 00-27-0002-0040 is sold separately.

ActiveLED® SL1-SPT Series Part Numbers:

00-27-6612-5551, 48 Watt LEDs, 50 Watt fixture, Brown
00-27-6612-5574, 72 Watt LEDs, 75 Watt fixture, Brown

00-27-0002-0040 Adapter, sold separately


Technical Information

Input Voltage:• Auto-sensing 100..277V AC, 50/60 Hz
• Digital Power Source, dedicated circuit strongly recommended
Power Statistics:Dependent upon model selected:
• 48 or 72 Watt LEDs
• 50 or 75 Watt Fixtures
Power Factor:> 0.95 (at 208 Volts)
Listings & Tests:cUL Listed Driver, suitable for damp locations.
TM21 based on CALIPER ISTM Test to UL1598
CALIPER LM-79 Report, LM-80 info available
CE File, RoHS compliant, IP66 Rated.
Conforms to FCC Part 15.19 Subpart B Class A
Operating Temp:-58° F to +149° F (-50° F to +65° C)
Dimensions:23"(W) x 23"(L) x 7"(H)(58.4 x 58.4 x 17.8 cm)
Weight:37.2 lbs (19.9 Kg)
CCT Color Temperatures:2700K, 3000K, 3500K, 4000K or 5000K, in accordance with ANSI C78.377A

Caution! All specifications published herein are subject to change without notice. See website ActiveLED.com for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale.com for Terms and Condtions of Sale and Service.
