Wall Mounting Bracket Kit for any ActiveLED® Flood Light


  • Sturdy bracket design mounts any ActiveLED® floodlight on a wall or flat surface in any orientation to suit most applications

  • Suitable for all ActiveLED® Flood Lights, large extrusion (8, 11, 13, 24 or 40" versions)

  • Pre-drilled brackets facilitate easy installation

  • Kit includes one left-hand and one right-hand bracket that utilize a slot to facilitate easy installation of the flood light's 10mm Allthread mounting bolts

  • Unpainted Stainless Steel for a maintenance free installation

  • Environmentally Safe Lighting:
    • Zero mercury content
    • Eliminates disposal of
    hazardous materials
    • Facilitates LEED® points

  • Optional ActiveLED controls for additional energy savings:
    • Motion Sensor
    • Daylight Sensor
    • Digital Rotary Dimmer
    • LightSpace Manager
    • Battery Backup for
    emergency lighting



Wall Mounting Bracket Kit provides flexible mounting options for any ActiveLED® Flood Light

Wall Mounting Bracket Kit - Sturdy design mounts any ActiveLED® Flood Lights (large extrusion, 8", 11", 13", 24" or 40" lengths) in any orientation and as close to the wall or flat surface as possible while allowing precise rotational adjustment of the flood light (as per the image to the left)

The Wall Mounting Kit comprises one left-hand and one right-hand matching brackets that sturdily support a Flood Light.
Installation is a simple matter of positioning the two end brackets the appropriate distance apart and attaching to the building structure with two bolts each, total of four bolts (mounting bolts not included).

The floodlight is also easily installed onto the brackets utilizing the hole at the end of one bracket and the slot at the end of the other bracket to accept the floodlight's 10mm Allthread mounting bolts.

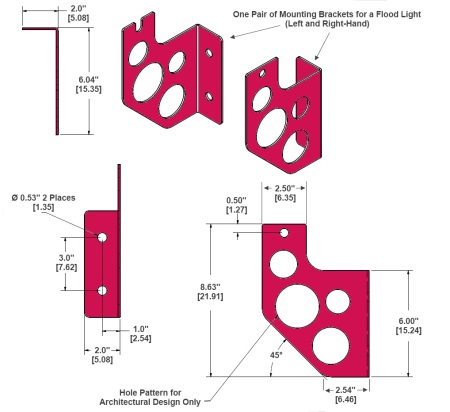

Schematic of the Wall Mounting Bracket Kit 00-27-0003-0004

The following schematic outlines the overall dimensions of the brackets, including mounting hole sizes and positions. One pair of brackets support a flood light 4.75" at the center line from the mounting surface, allowing the flood light to be rotationally adjusted to the ideal position for illuminating the task.

00-27-0003-0004

ActiveLED® Technology

Ringdale uses the latest in energy efficient LEDs and LED Modules producing equal or greater light output than HID light fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED® Diffuser Technology

The Ringdale ActiveLED light fixtures use state-of-the-art diffuser technology with a minimal amount of light loss within the fixture providing for maximum lighting efficiency.

ActiveLED® Warranties

We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements, Fixtures, Power Supplies / Drivers and this Wall Mount Bracket Kit.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

Wall Mounting Bracket Kit Part Number:

00-27-0003-0004, suitable for any "large extrusion" flood lights (8", 11", 13", 24" or 40" versions)


Technical Information

Construction Material:12 gauge 304 sheet unpainted Stainless Steel, laser-formed
Dimensions:8.63" tall x 6.04" deep (21.91 x 15.35 cm)
Weight:1.0 lb (0.46 Kg) each bracket, 2 per kit
Wall Mounting:Each Bracket has two 0.50" diameter holes to accommodate suitable mounting bolts
(bolts not included)
Mounting Distance:Brackets support a flood light 4.75" at center line from mounting surface
Flood Light Support:Slots in the Brackets accept the Flood Light's 10 mm Allthread
Mounting Kit Contents:One Left-hand and one Right-hand matching Brackets
Part Number:00-27-0003-0004
