Quad Wall Mounting Bracket Assy for up to four 40


  • Quad Wall Mounting Bracket Assy - Mounts up to four ActiveLED® 40" Flood Lights to a flat surface

  • Ideally suited for installation of Flood Lights to meet high task light levels or where the lights are to be mounted high up

  • Each Flood Light can be independently swiveled to align the Light with the task

    Prerequisites
    ActiveLED 40" Flood Lights (up to 4) (00-27-1611 series)

  • The Quad Wall Mounting Bracket can be installed such that the Flood Lights are configured in a vertical or horizontal orientation

  • Easy installation - The two Support Brackets are attached to the wall (bolts not provided) and the Frame Assembly simply hooks onto the brackets and is held in place by the four retaining brackets and bolts (supplied)

  • Unpainted Stainless Steel construction to withstand damp and/or corrosive environments, including indoor swimming pools.
    Available in White, Brown, Silver or Charcoal Grey to match the color of the attached Flood Lights

  • Environmentally Safe Lighting:
    • Zero mercury content
    • Eliminates disposal of
    hazardous materials
    • Facilitates LEED® points

  • Optional ActiveLED controls for additional energy savings:
    • Motion Sensor
    • Daylight Sensor
    • Dimming capabilities



Quad Wall Mounting Bracket Assy for up to four 40" ActiveLED® Flood Lights

Quad Wall Mounting Bracket Assembly provides flexible mounting options for up to four ActiveLED® 40" Flood Lights to a flat wall surface.

The image on the left depicts a Quad Wall Bracket Assembly complete with four 40" Flood Lights orientated vertically.

Sturdy design securely mounts up to four ActiveLED 40" Flood Lights to a flat wall surface. Each Flood Light can be independently swiveled / adjusted to provide the optimum light pattern and light levels at the task.

The Quad Wall Mounting Bracket Assembly is ideally suited for installations where the application requires high lighting levels or where the Flood Lights need to be installed high up on a wall.
It is designed for easy installation with all parts pre-drilled and ready for assembly, supporting up to four 40" Flood Lights.

The Mounting Bracket can be assembled such that the Flood Lights are supported in either a vertical or horizontal orientation.

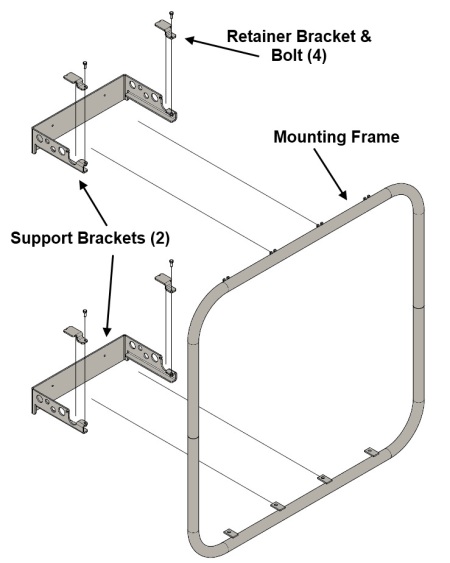

Schematic of the Quad Wall Mounting Bracket Assembly

The following schematic outlines the key components of the Quad Wall Mounting Bracket Assembly, 00-27-0003-0010. The two Support Brackets are securely attached to the vertical wall / structure and the Mounting Frame is located onto these two Brackets and the four Retainer Brackets and associate bolts secure the Frame to the Supports. The Frame can be orientated for either vertical or horizontal configuration of the ActiveLED 40" flood lights.

00-27-0003-0010

Quad Wall Mounting Bracket Assembly Contents

● Main Quad Frame Assembly, can be orientated on the wall either vertically or horizontally
● Support Bracket (2)
● Retainer Bracket (4)
● High-tensile retainer bolts, nuts & washers (4 sets)

ActiveLED® 40" Flood Lights

Select the flood lights that best meet the application from the comprehensive Ringdale ActiveLED range, including:
● 48 Watt, 72 Watt or 96 Watt
● Traditional, Narrow, Wide, Xtra-Wide, Flag-Pole, Stadium Light Pattern, etc.
● Standard or Etched Second Diffuser
● Energy Management Options

Please refer to the separate ActiveLED Flood Light datasheets for more details.

ActiveLED® Technology

Ringdale uses the latest in energy efficient LEDs and LED modules producing equivalent or greater light output than fluorescent (HID) fixtures. Our state-of-the-art electronics monitor current and temperature of the substrate to assure maximum performance under the prevailing environmental conditions and a Lumen Lifetime of 90,000 hours (90% Luminous Flux).

ActiveLED® Warranties

We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements, fixtures and this Quad Wall Mounting Bracket Assembly, 5 years on power supplies.

Ringdale is an ISO 9001:2000 company, registered under BSI certificate FM-1880. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.

PREREQUISITES: Ringdale 40" ActiveLED Flood Lights, up to four


ActiveLED® Quad Wall Mounting Bracket Part Number:

00-27-0003-0010


Technical Information

Construction Material:Unpainted Stainless Steel for longevity
Kit Contents:• Quad Frame Assy (1)
• Support Bracket (2)
• Retainer Bracket (4)
• High tensile retainer bolts, nuts & washers (4 sets)
NOT INCLUDED - Flood Lights
Quad Frame Dimensions:44.75" x 44.75"(113.7 x 113.7 cm)
Support Bracket Dimensions:18.0" (L) x 10.0" (W) x 4.13" (D)(45.72 x 25.40 x 10.50 cm)
Total Weight:22 lbs complete (10 Kg)
Installation:Suitable for mounting on a flat surface
Prerequisites:40" ActiveLED Flood Lights (up to 4)
Part Number:00-27-0003-0010
