Barracuda 12..48 Volt Current Source Driver for up to two 200 Watt LED Modules


  • 12..48 V AC or DC ActiveLED® power supply / driver for worldwide useage

  • Unlimited number of power supplies can be daisy-chained, each power supply has a data-in and data-out connector for EDSaP compliant LightSpace™ Managers or to daisy-chain to the next fixture to build a lighting zone.

  • Capable of driving one or many ActiveLED® light fixtures, up to a combined maximum of 400 Watt

  • Digitally dimmable from 100% to 0% in 2% increments (ActiveLED digital rotary dimmer, LightSpace Manager optional). One dimmer device can dim all the lights in a lighting zone. a lighting zone can have 1000's of devices.

  • Optional ActiveLED controls for additional energy savings:

    • Motion Sensor
    • Daylight Sensor
    • Digital Rotary Dimmer
    • LightSpace Manager

  • LightSpace Management® is implemented using the EDSaP data link between power supplies, dimmers and motion / occupancy sensors

  • Designed and manufactured by ActiveLED with facilities in USA and UK

  • EDSaP to DMX converter available.

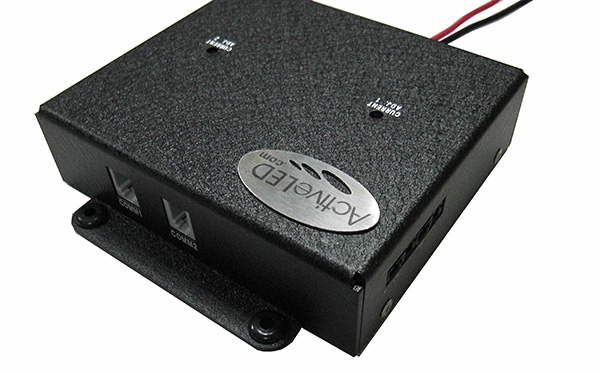

Barracuda - 12..48-Volt DC or AC Input Programmable 2 x 200 Watt Universal Power Source / LED Driver

DC Current Source Driver for up to two 200 Watt LED Modules (24..110 V LED ) current source programmable from 330 mA to 2400 mA, Input Voltage 12..48V DC or AC for LED lighting arrangements in automotive and marine applications with 0 to 10V dimming, motion sensing and daylight sensing inputs.

Intelligent Power Source to power ActiveLED® and other Lighting fixtures requiring a DC constant current source. The low input voltage LED Power Source can drive one or many ActiveLED Lighting fixtures, up to a combined maximum of 400 Watt - two channels each of up to 200 Watt.

The ActiveLED Power Source optionally supports 0-10V dimming and ActiveLED LightSpace Management® for intelligent control and management of light output and power consumption of attached low-voltage LED light fixtures. The ActiceLED power source also supports optional daylight and motion sensor inputs.



By deploying the optional dimmers, sensors and interconnection to ActiveLED light fixtures, additional energy savings can be achieved by managing the light output and on/off times to meet user occupancy, task and safety needs.

EXAMPLE:
Multiple LED Drivers can be daisy-chained to form a lighting zone. The first device in the zone accepts digital dimming from an EDSaP device , 0-10Volt, daylight sensor and/or motion sensor input and relays light output settings to devices downstream via EDSaP digital dimming signal. When no controls are connected the device can be turned on and off by applying input power or by shorting out a potential free signal input using a simple switch.

ActiveLED® Technology

Ringdale uses the latest technology in energy efficient power supply and driver design achieving MTBF of more than 100,000 hours when used within its operating temperature range.

ActiveLED® Warranties

We provide mechanically robust outdoor lighting systems; our warranties are 10 years on LED elements and fixtures.

ActiveLED is an ISO 9001:2015 company. Ringdale provides products of the highest quality designed and manufactured in Texas, USA and in the United Kingdom.


ActiveLED® Power Source Part Numbers:

00-27-0726-0100, 100 Watt maximum
00-27-0726-0200, 200 Watt maximum
00-27-0726-0400, 400 Watt maximum


Technical Information

Input Voltage:• 12..48 Volts DC (or AC)
Maximum Output (mA):Two (2) current-controlled outputs, adjustable from 330mA up to 2400 mA per channel
max. LED Voltage 110V
Maximum Output (watts):Two (2) current-controlled outputs, up to 200 Watt per channel
Maximum Wattage:Total wattage for Power Supply is 520Watt
Operating Temperature:-50° C to +65° C (-58° F to +149° F)
Listings:CE, RoHS compliant, suitable for damp locations.
Conforms to FCC Part 15.19 Subpart B Class A
Dimensions:6.125" x 5.625" x 1.50" (15.56 x 14.29 x 3.81 cm)
Weight:1.2 lbs (0.8 Kg)
